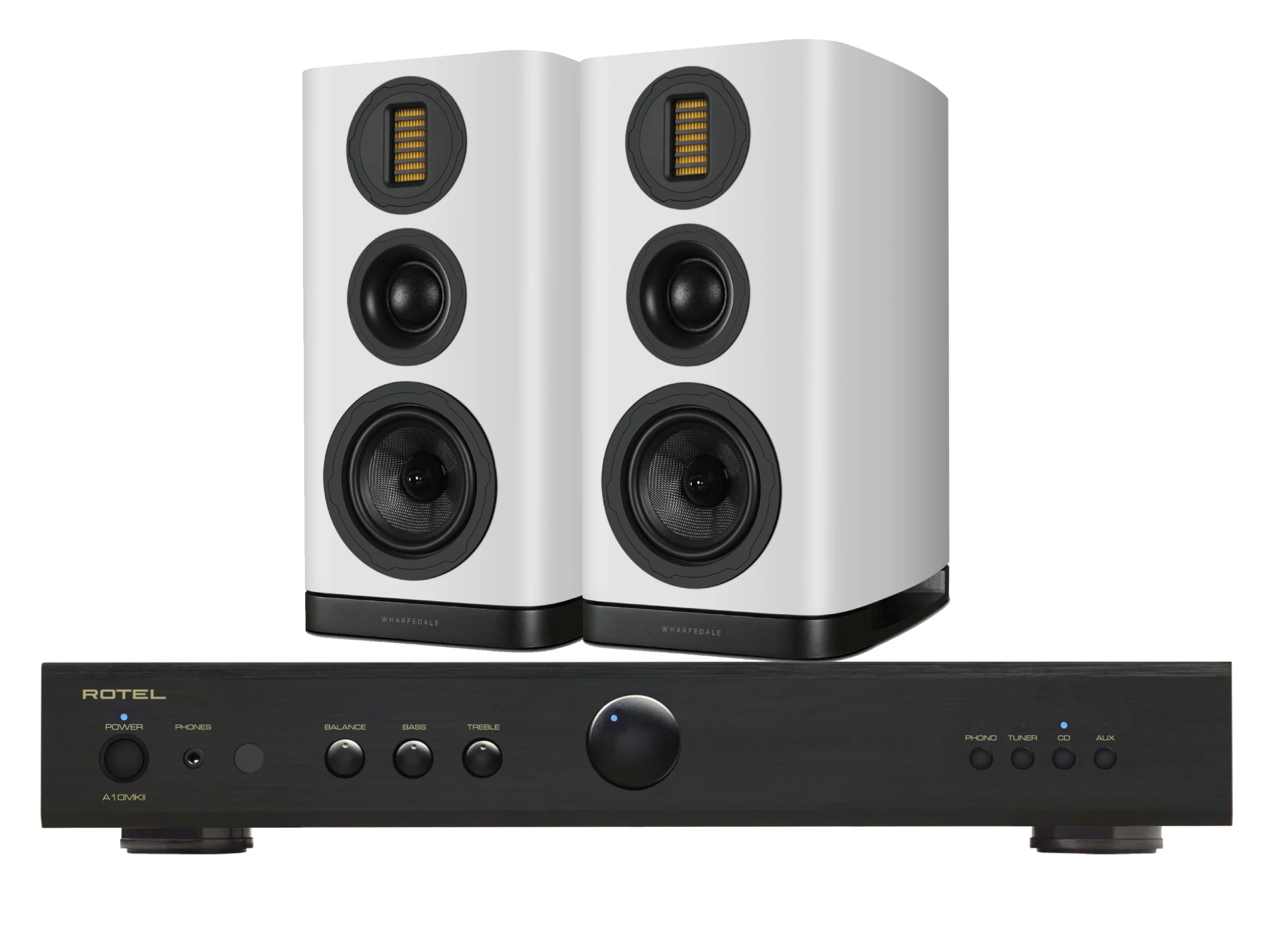

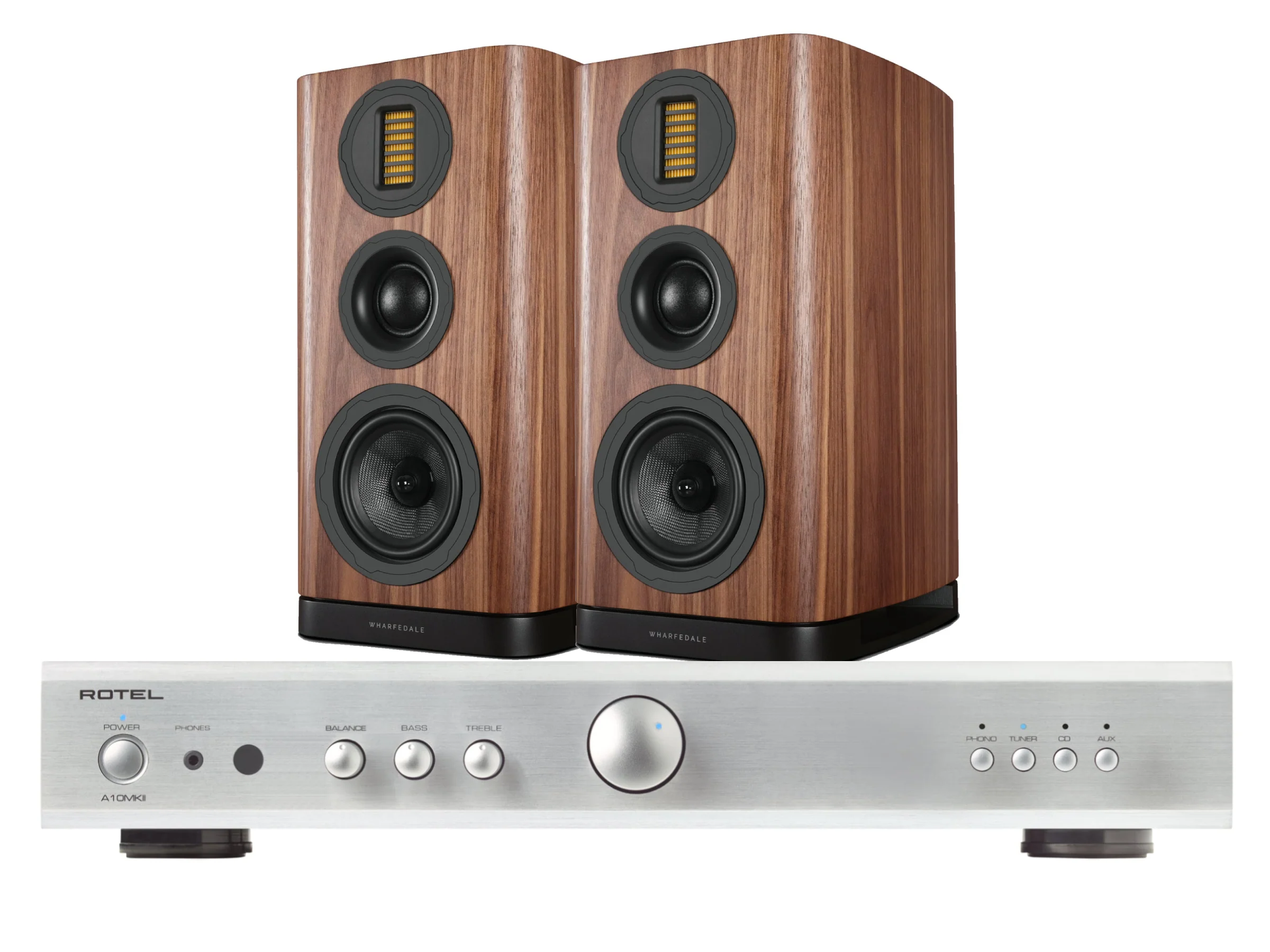

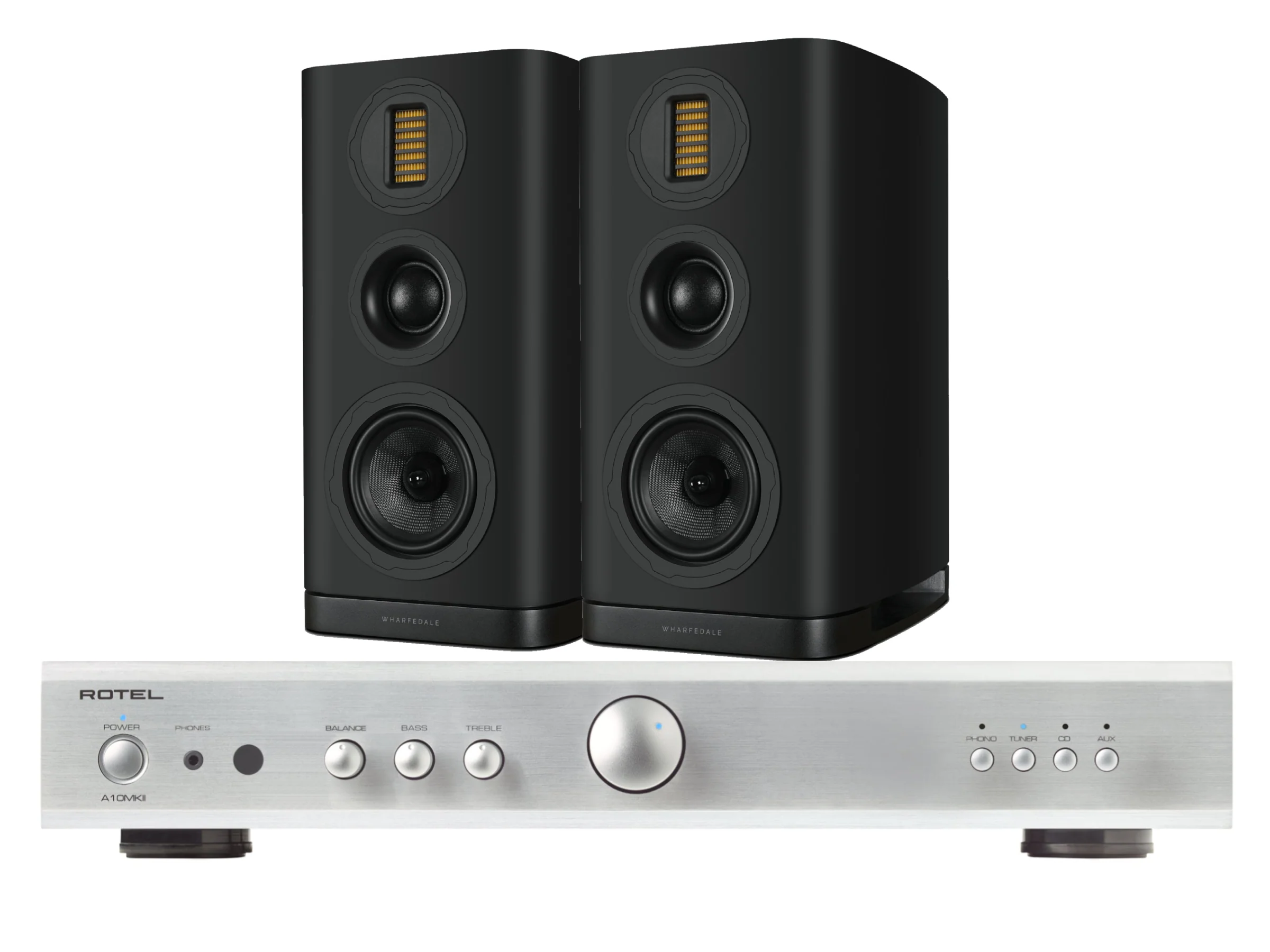

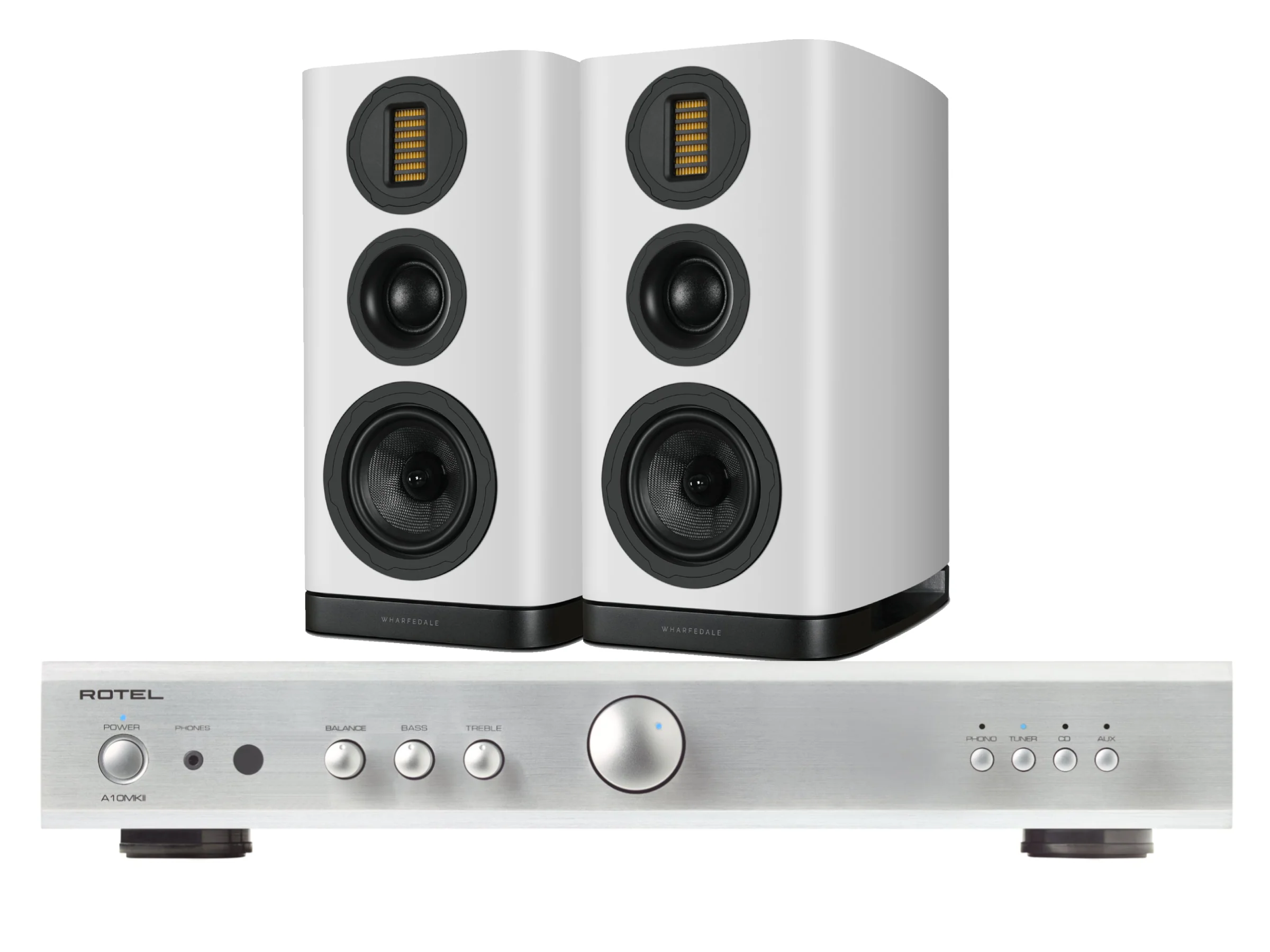

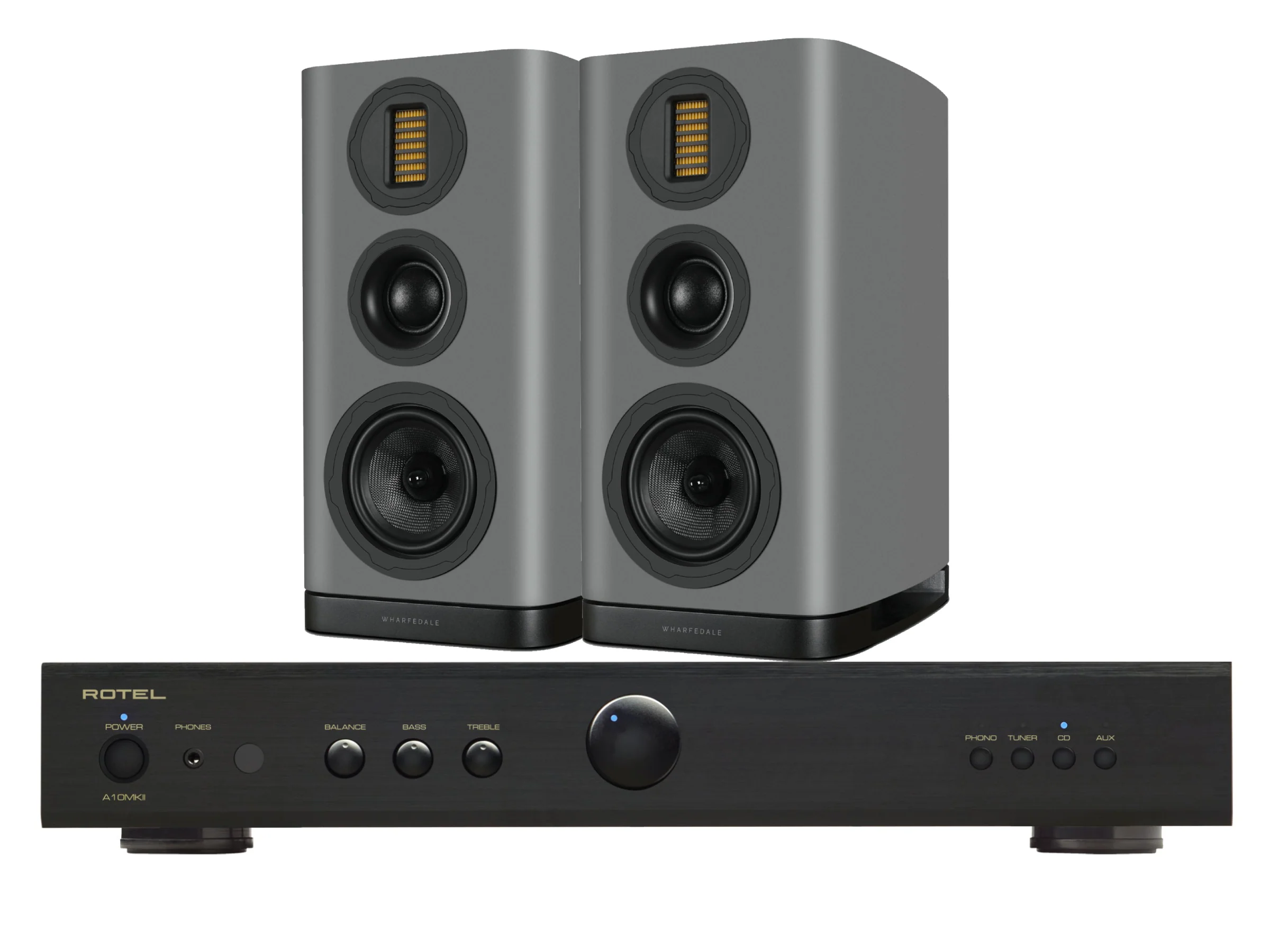

Rotel A10MkII with Wharfedale EVO 5.2 Bookshelf Speakers

Select Amplifier Finish

Select Speakers Finish

From $564.21

Original: $1,612.03

-65%

Rotel A10MkII with Wharfedale EVO 5.2 Bookshelf Speakers—

$1,612.03

$564.21

The Story

The Rotel A10MKII Integrated Amplifier offers the perfect combination of power and style for the music lover seeking to elevate their listening experience. Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A10 MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into more challenging loudspeakers.

Power supply innovations and critical circuit layout provide physical and electrical separation to lower the noise floor and increase musical dynamics. The multi-tap transformer delivers isolated power to the low voltage sensitive circuits and the high current amplifier output transistors further isolating the signal paths reducing unwanted distortion. This sound-first design supports fast transients and delivers an expressive, open musical performance.

All analogue sources are welcome, with three line-level RCA inputs, and a Moving Magnet compatible Phono stage provided for vinyl lovers. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.

An intuitive front panel layout includes rotary Bass, Treble, and Balance controls making the A10MKII a joy to use up close, while the included IR remote control, and a motorized analogue volume controller extend ease of use to the listening seat. User friendly features such as a detachable IEC power cord, two 12V trigger outputs, heavy 5 way speaker binding posts, and auto power off functions ensure compatibility with any installation.

Wharfedale EVO 5.2 Bookshelf Speakers

The EVO 5 Series marks a significant advancement for Wharfedale, taking the successful formula of the EVO4 and enhancing it with luxurious design upgrades and technical improvements. This evolution brings a new level of sophistication, offering a speaker that defies its price bracket. Combining high-performance features and an elegant appearance, the EVO 5 delivers an exceptional listening experience suitable for both audiophiles and casual listeners alike. Whether you're after detailed musical expression or clear, immersive sound, the EVO 5 speakers provide a high-fidelity experience that competes with much more expensive audio systems.

Distinct Approach to High Frequencies

The EVO series is rooted in the same extensive research and development that defined Wharfedale’s flagship Elysian project. It was designed to bridge the gap between affordable pricing and high-end sound quality, with the EVO AMT (Air Motion Transformer) high-frequency unit being a standout feature. The AMT tweeter offers unparalleled precision and detail by using a pleated diaphragm, which expands and contracts to move air efficiently. This allows the AMT to push four times more air than a traditional dome tweeter, resulting in lower distortion, faster transient response, a wider frequency range, and superior dispersion.

ResoFrame™

Wharfedale has further refined the EVO 5's performance with the addition of Silentweave™, a new sound-absorbing material placed behind the AMT diaphragm. Silentweave™ combines cotton and felt fibre to minimise sound wave reflection and coloration, ensuring a purer sonic output. In addition, the ResoFrame™ acoustic damping system, made from elastomer, has been incorporated into the drive units to reduce mechanical resonances and smooth the response. The AMT benefits from an additional elastomer gasket, which enhances the lower treble band’s clarity and removes any harshness, resulting in a cleaner, more natural high-frequency reproduction.

Unparalleled Vocal Reproduction

The EVO 5 also features innovative improvements in midrange and bass performance. The new Resoseal™ technique applies a mass ring of elastomer to the rear of the cone, optimising midrange response and enhancing vocal reproduction. This ensures that voices sound more natural, full-bodied, and emotionally engaging. These enhancements contribute to an overall listening experience that is both immersive and rich, with vocals and midrange frequencies becoming more prominent and engaging.

Next Gen Slot Loaded Profiled Port

The internal cabinet volume of the EVO 5 has been optimised for deeper bass extension and improved sound dispersion. This results in a more immersive and expansive audio field. Additionally, the speaker features a hybrid plinth made from both metal and wood, enhancing structural integrity and minimising unwanted vibrations. Wharfedale’s proprietary Slot Loaded Profiled Port (SLPP) system channels the bass drivers' rear output effectively, improving low-frequency performance. The innovative three-directional SLPP port design reduces turbulence and distortion, allowing the speakers to produce tight, controlled bass that integrates seamlessly with the midrange and treble for a balanced and refined sound.

A10MkII Integrated Amplifier Specifications

Power Output	50 Watts / ch (8 Ohms)
Total Harmonic Distortion	< 0.03%
Intermodulation Distortion (60 Hz : 7k Hz, 4:1)	< 0.03%
Frequency Response Phono Input Line Level Inputs	20 Hz - 20k Hz, -0.5 dB, +0.3 dB 10 Hz - 100k Hz, -0.5 dB, +0.05 dB
Damping Factor (20 - 20,000 Hz, 8 Ohms)	120
Input Sensitivity / Impedance Phono Input Line Level Inputs	1.5 mV / 43k Ohms 120 mV / 45k Ohms
Input Overload Phono Input Line Level Inputs	50 mV 4 V
Tone Controls - Bass / Treble	± 6 dB at 100 Hz / 10k Hz
Signal to Noise Ratio (IHF “A” weighted) Phono Input Line Level Inputs	85 dB 90 dB
Signal to Noise Ratio (IHF “A” weighted) Phono Input Line Level Inputs	85 dB 90 dB
Power Requirements USA Europe	120 V, 60 Hz 230 V, 50 Hz
Power Consumption	150 Watts
Standby Power Consumption	< 0.5 Watts
BTU (4 Ohms, 1/8 power)	450 BTU/h
Dimensions (WxHxD)	430 x 73 x 347 mm 17” x 2 7/8” x 13 5/8”
Front Panel Height	60 mm / 2 3/8”.
Weight (net)	6.6 kg, 14.5 lbs.
Finish	Black and Silver
