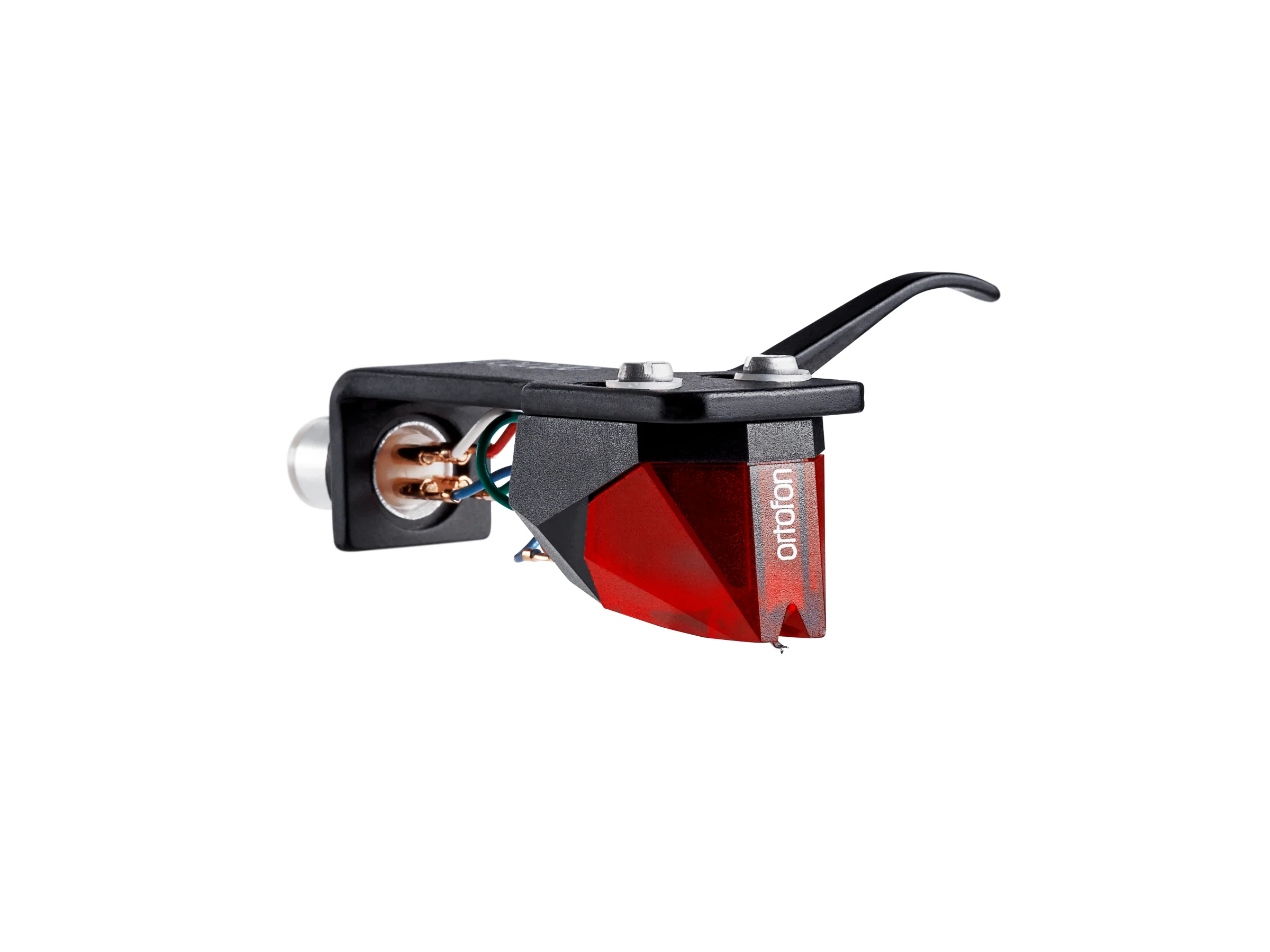

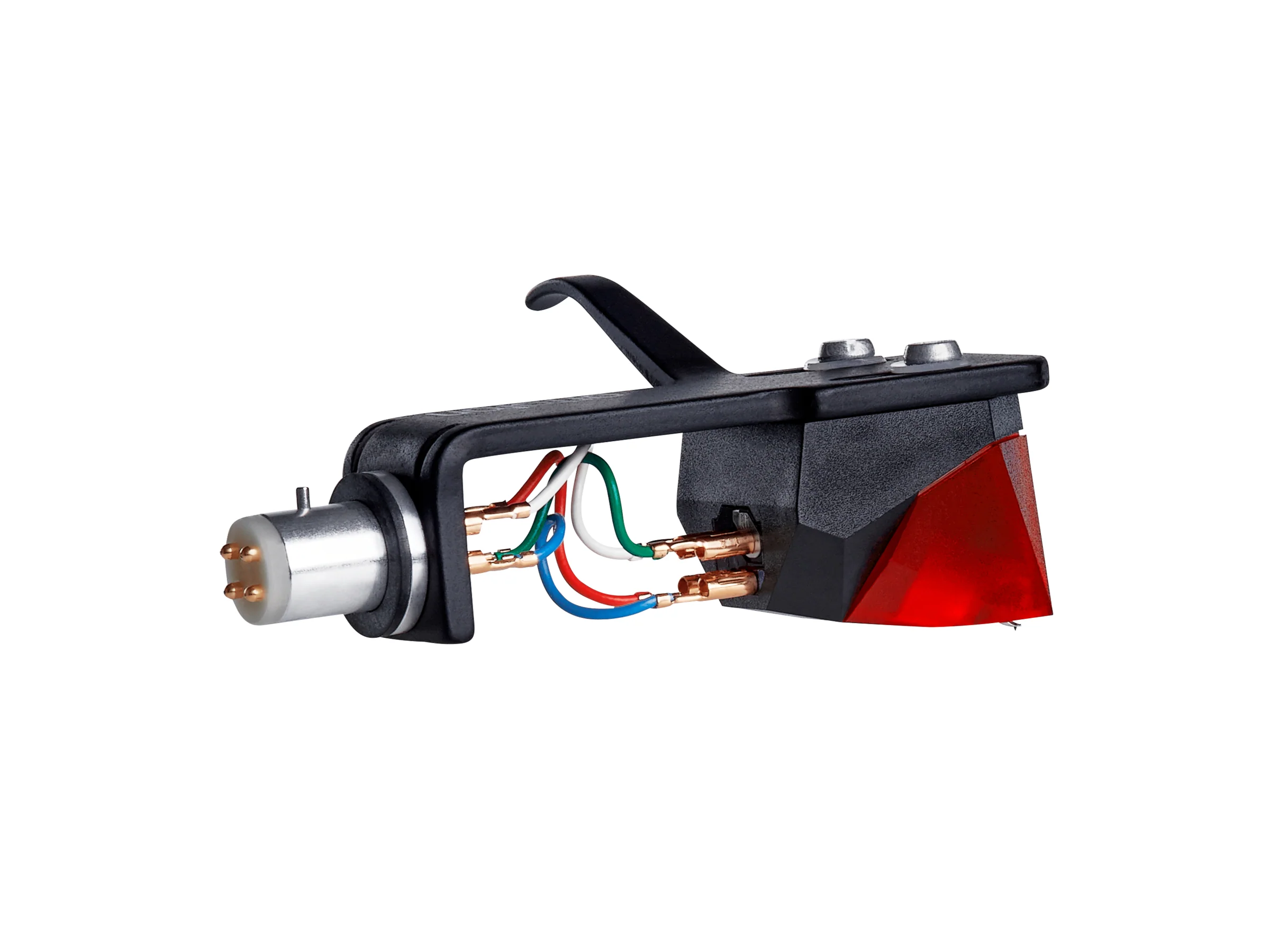

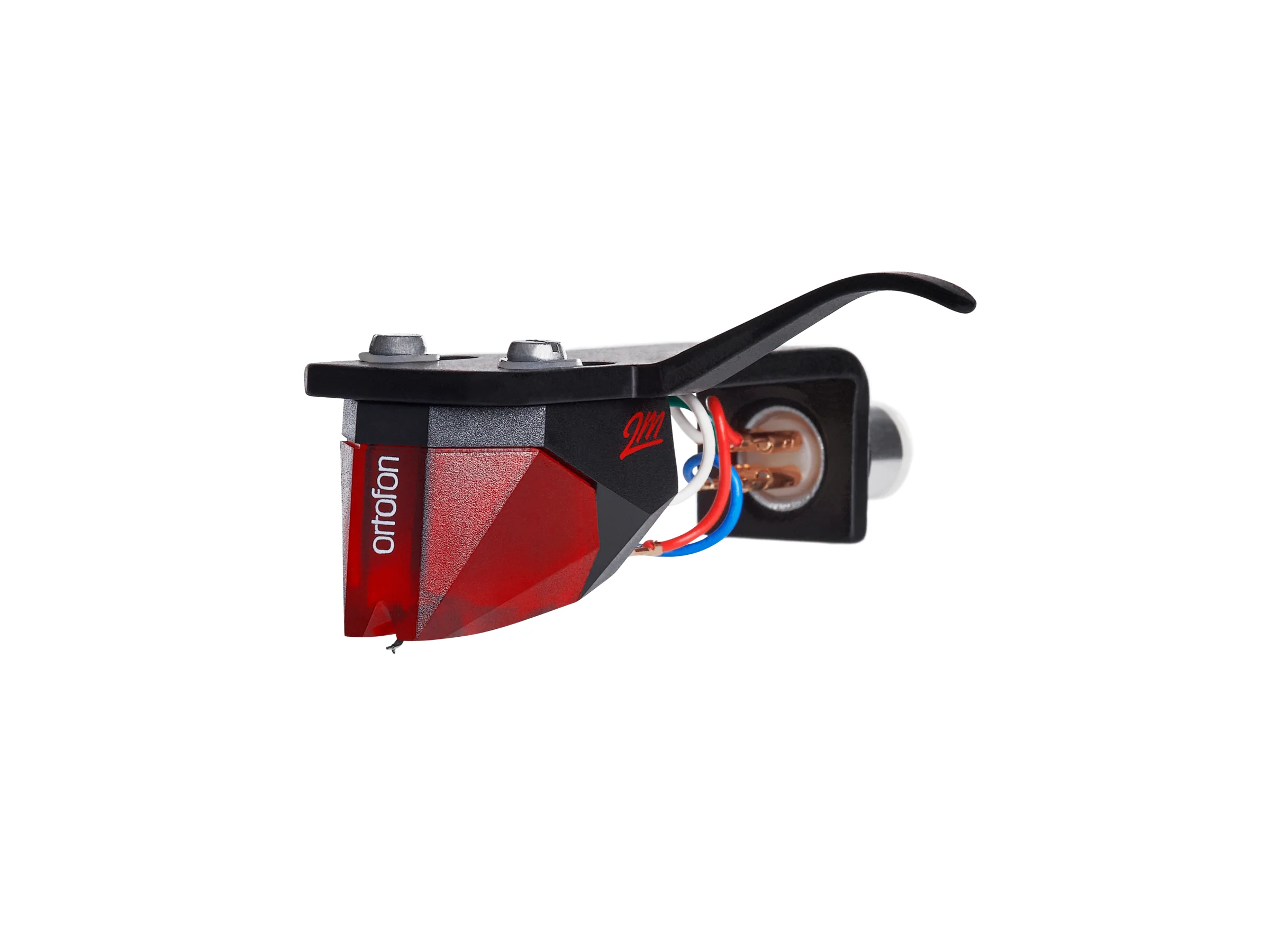

The Ortofon 2M Red PnP MkII is the latest version of the 2M Red cartridge, specifically designed for tonearms that accept direct plug-in mounting. This Plug and Play version delivers the same excellent sound quality as the standard 2M Red but is tailored for tonearms without a traditional headshell, offering a practical and straightforward installation for turntables with an SME style arm, such as Technics.
Manufactured from a high-rigidity compound used in the medical industry, the 2M Red Plug and Play effectively reduces unwanted vibrations. It features a universal mount fitting for a wide range of tonearms and utilizes a polished elliptical diamond stylus. The cartridge's interchangeable stylus design ensures easy maintenance and long-term usability.
Specifications
| Output Voltage: (at 1kHz, 5cm/sec) | 5.5mV |
| Channel Balance at 1kHz: | 1.5dB |
| Channel Separation at 1kHz: | 22dB |
| Channel Separation at 15kHz: | 15dB |
| Frequency Range (at -3dB): | 20 Hz - 22 kHz |
| Frequency Response 20Hz - 20kHz: | +3 / -1dB |
| Tracking Ability at 315Hz: | Typically 70μm |
| Compliance, Dynamic, Lateral: | 20μm / mN |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18μm |
| Tracking Force Range: | 1.6 - 2.0g (16 - 20mN) |
| Recommended Tracking Force: | 1.8g (18mN) |
| Tracking Angle: | 20º |
| Internal Impedance / DC Resistance: | 1.3kΩ |
| Internal Inductance: | 700mH |
| Recommended Load Resistance: | 47kΩ |
| Recommended Load Capacitance: | 150 - 300pF |
| Cartridge Colour Body / Stylus: | Black / Red |
| Weight: | 23g |
