$178.35The Story

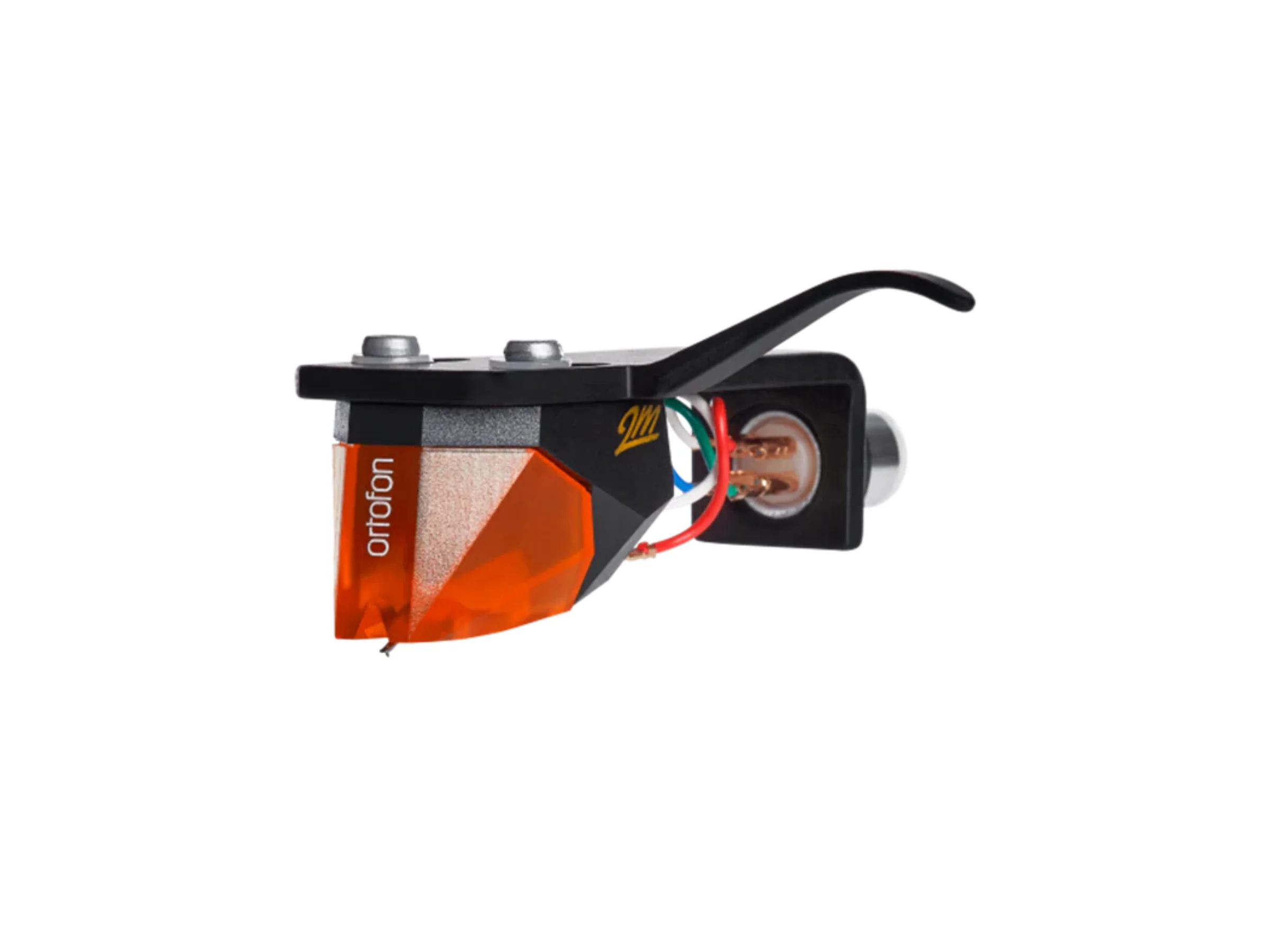

This Plug and Play version of the Ortofon 2M bronze cartridge offers the same exceptional sound quality as the standard model, but it is specifically designed for tonearms without a conventional headshell. It provides a practical and straightforward solution for turntables with SME-style arms, such as those produced by Technics, allowing for easy and efficient installation.
Upgraded Engine
The cartridge bodies of the 2M Bronze and 2M Black are crafted from a newly developed Noryl plastic and glass combination, a cutting-edge material that ensures high rigidity while effectively minimising unwanted resonances. Both models also feature an upgraded engine, incorporating split pole pins with silver-plated copper wire, which enhances their overall performance and sound quality.
Ortofon's 2M cartridges are meticulously designed to deliver precise and accurate retrieval of information from the record groove, staying true to the company’s philosophy of reproducing sound as faithfully as possible, without adding any tonal colouring. The diamonds on the 2M Bronze and 2M Black are expertly cut and polished to meet the highest industry standards, ensuring superior sound reproduction.
Features
- Improved engine, which provides an output of 5.5mV
- Optimised sound reproduction and high level of sonic accuracy
- Nude Fine Line diamond, which is particularly suited for demanding applications
- Special upgraded 2M cartridge body, featuring split pole pins with a silver plated copper wire
- Split pole pins with a copper wire
- All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
- Stylus brush included
- Premounted version is mounted on our popular SH-4 Black headshell
- Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
- Correct Baerwald alignment with tonearms with universal mount.
Specifications
| Output Voltage (at 1kHz, 5cm/sec): | 5mV |
| Channel Balance at 1kHz: | 1dB |
| Channel Separation at 1kHz: | 26dB |
| Channel Separation at 15kHz: | 15dB |
| Frequency Range (at -3dB): | 20Hz - 29kHz |
| Frequency Response 20Hz - 20kHz: | +2 / -0dB |
| Tracking Ability at 315Hz: | Typically 80μm |
| Compliance, Dynamic, Lateral: | 22μm / mN |
| Stylus Type: | Nude Fine Line |
| Stylus Tip Radius r / R: | 8 / 40μm |
| Tracking Force Range: | 1.4 - 1.7g (14 - 17mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Internal Impedance / DC Resistance: | 1.2kΩ |
| Internal Inductance: | 630mH |
| Recommended Load Resistance: | 47kΩ |
| Recommended Load Capacitance: | 150 - 300pF |
| Cartridge Colour Body / Stylus: | Black / Bronze |
| Cartridge Weight: | 7.2g |
| Weight Premounted on SH-4: | 16.7g |
| Replacement Stylus Unit: | Stylus 2M Bronze |
| Accessories: | 1 x Stylus Brush / 1 x Screwdriver / 2 x Screw M2.5 x 5 / 2 x Screw M2.5 x 7 / 1 x Stylus Pressure Gauge |
Description
This Plug and Play version of the Ortofon 2M bronze cartridge offers the same exceptional sound quality as the standard model, but it is specifically designed for tonearms without a conventional headshell. It provides a practical and straightforward solution for turntables with SME-style arms, such as those produced by Technics, allowing for easy and efficient installation.
Upgraded Engine
The cartridge bodies of the 2M Bronze and 2M Black are crafted from a newly developed Noryl plastic and glass combination, a cutting-edge material that ensures high rigidity while effectively minimising unwanted resonances. Both models also feature an upgraded engine, incorporating split pole pins with silver-plated copper wire, which enhances their overall performance and sound quality.
Ortofon's 2M cartridges are meticulously designed to deliver precise and accurate retrieval of information from the record groove, staying true to the company’s philosophy of reproducing sound as faithfully as possible, without adding any tonal colouring. The diamonds on the 2M Bronze and 2M Black are expertly cut and polished to meet the highest industry standards, ensuring superior sound reproduction.
Features
- Improved engine, which provides an output of 5.5mV
- Optimised sound reproduction and high level of sonic accuracy
- Nude Fine Line diamond, which is particularly suited for demanding applications
- Special upgraded 2M cartridge body, featuring split pole pins with a silver plated copper wire
- Split pole pins with a copper wire
- All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
- Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
- Stylus brush included
- Premounted version is mounted on our popular SH-4 Black headshell
- Premounted version is easily and directly mountable on S-shaped tonearms with universal mount.
- Correct Baerwald alignment with tonearms with universal mount.
Specifications
| Output Voltage (at 1kHz, 5cm/sec): | 5mV |
| Channel Balance at 1kHz: | 1dB |
| Channel Separation at 1kHz: | 26dB |
| Channel Separation at 15kHz: | 15dB |
| Frequency Range (at -3dB): | 20Hz - 29kHz |
| Frequency Response 20Hz - 20kHz: | +2 / -0dB |
| Tracking Ability at 315Hz: | Typically 80μm |
| Compliance, Dynamic, Lateral: | 22μm / mN |
| Stylus Type: | Nude Fine Line |
| Stylus Tip Radius r / R: | 8 / 40μm |
| Tracking Force Range: | 1.4 - 1.7g (14 - 17mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Internal Impedance / DC Resistance: | 1.2kΩ |
| Internal Inductance: | 630mH |
| Recommended Load Resistance: | 47kΩ |
| Recommended Load Capacitance: | 150 - 300pF |
| Cartridge Colour Body / Stylus: | Black / Bronze |
| Cartridge Weight: | 7.2g |
| Weight Premounted on SH-4: | 16.7g |
| Replacement Stylus Unit: | Stylus 2M Bronze |
| Accessories: | 1 x Stylus Brush / 1 x Screwdriver / 2 x Screw M2.5 x 5 / 2 x Screw M2.5 x 7 / 1 x Stylus Pressure Gauge |
