The Story
The HTM82 D5 delivers our flagship centre channel performance on a smaller scale. Paired perfectly with the 803 D5 or the 804 D5 loudspeakers, it adds beautiful clarity and precision to your movie-watching experience.
Featuring our Diamond dome tweeter, Solid Body Tweeter-on-Top, a decoupled Continuum Cone midrange drive unit and twin Aerofoil bass cones, HTM82 D5 is engineered with our most advanced technology to unveil even more detail from your favourite entertainment. Available in Stealth Black, Warm White and Dark Walnut with an optional matching floorstand for seamless installation.
Specifications
| Dimensions: |
Height: 289mm (11.4in) including tweeter Width: 715mm (28.1in) cabinet only Depth: 363mm (14.3in) including grille and terminals |
| Net Weight: | 26.1kg (57.5lbs) |
| Technical Features: |
Diamond dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Matrix™ Aerofoil™ bass cones Flowport™ |
| Description: | 3-way vented-box system |
| Drive Units: |
1 × 25mm (1in) Diamond dome high-frequency 1 × 130mm (5in) Continuum™ cone FST midrange 2 × 165mm (6.5in) Aerofoil™ bass |
| Frequency Range: | 33Hz – 35kHz (-6dB) |
| Frequency Response: | 45Hz – 28kHz (±3dB) |
| Sensitivity: | 89dB |
| Harmonic Distortion: |
2nd and 3rd harmonics (90dB, 1m on axis) <1% from 80Hz – 20kHz <0.3% from 100Hz – 8kHz |
| Nominal Impedance: | 8Ω (minimum 3.0Ω) |
| Recommended Amplifier Power: | 50W – 1000W into 8Ω on unclipped programme |
| Maximum Recommended Cable Impedance: | 0.1Ω |
| Cabinet Finishes: |
Stealth Black Warm White |
| Grille Finishes: |
Black (Stealth Black) Grey (Warm White) |

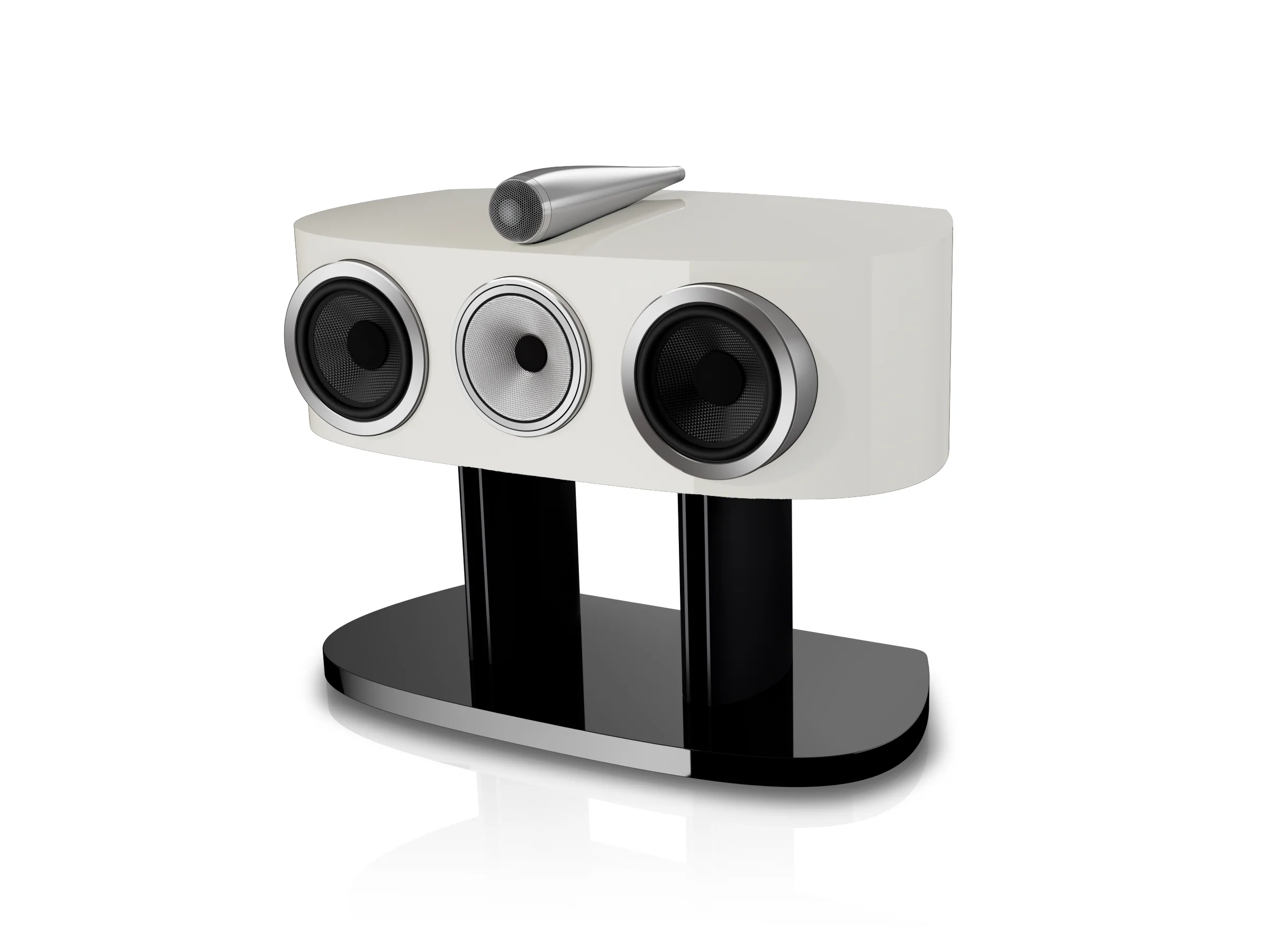

| Accessories: | FS-HTM Black stand: Titanium |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
The HTM82 D5 delivers our flagship centre channel performance on a smaller scale. Paired perfectly with the 803 D5 or the 804 D5 loudspeakers, it adds beautiful clarity and precision to your movie-watching experience.
Featuring our Diamond dome tweeter, Solid Body Tweeter-on-Top, a decoupled Continuum Cone midrange drive unit and twin Aerofoil bass cones, HTM82 D5 is engineered with our most advanced technology to unveil even more detail from your favourite entertainment. Available in Stealth Black, Warm White and Dark Walnut with an optional matching floorstand for seamless installation.
Specifications
| Dimensions: |
Height: 289mm (11.4in) including tweeter Width: 715mm (28.1in) cabinet only Depth: 363mm (14.3in) including grille and terminals |
| Net Weight: | 26.1kg (57.5lbs) |
| Technical Features: |
Diamond dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Matrix™ Aerofoil™ bass cones Flowport™ |
| Description: | 3-way vented-box system |
| Drive Units: |
1 × 25mm (1in) Diamond dome high-frequency 1 × 130mm (5in) Continuum™ cone FST midrange 2 × 165mm (6.5in) Aerofoil™ bass |
| Frequency Range: | 33Hz – 35kHz (-6dB) |
| Frequency Response: | 45Hz – 28kHz (±3dB) |
| Sensitivity: | 89dB |
| Harmonic Distortion: |
2nd and 3rd harmonics (90dB, 1m on axis) <1% from 80Hz – 20kHz <0.3% from 100Hz – 8kHz |
| Nominal Impedance: | 8Ω (minimum 3.0Ω) |
| Recommended Amplifier Power: | 50W – 1000W into 8Ω on unclipped programme |
| Maximum Recommended Cable Impedance: | 0.1Ω |
| Cabinet Finishes: |
Stealth Black Warm White |
| Grille Finishes: |
Black (Stealth Black) Grey (Warm White) |
| Accessories: | FS-HTM Black stand: Titanium |
