The Story
The 802 D5 is engineered for reference-grade stereo listening and breathtaking home theatre experiences.

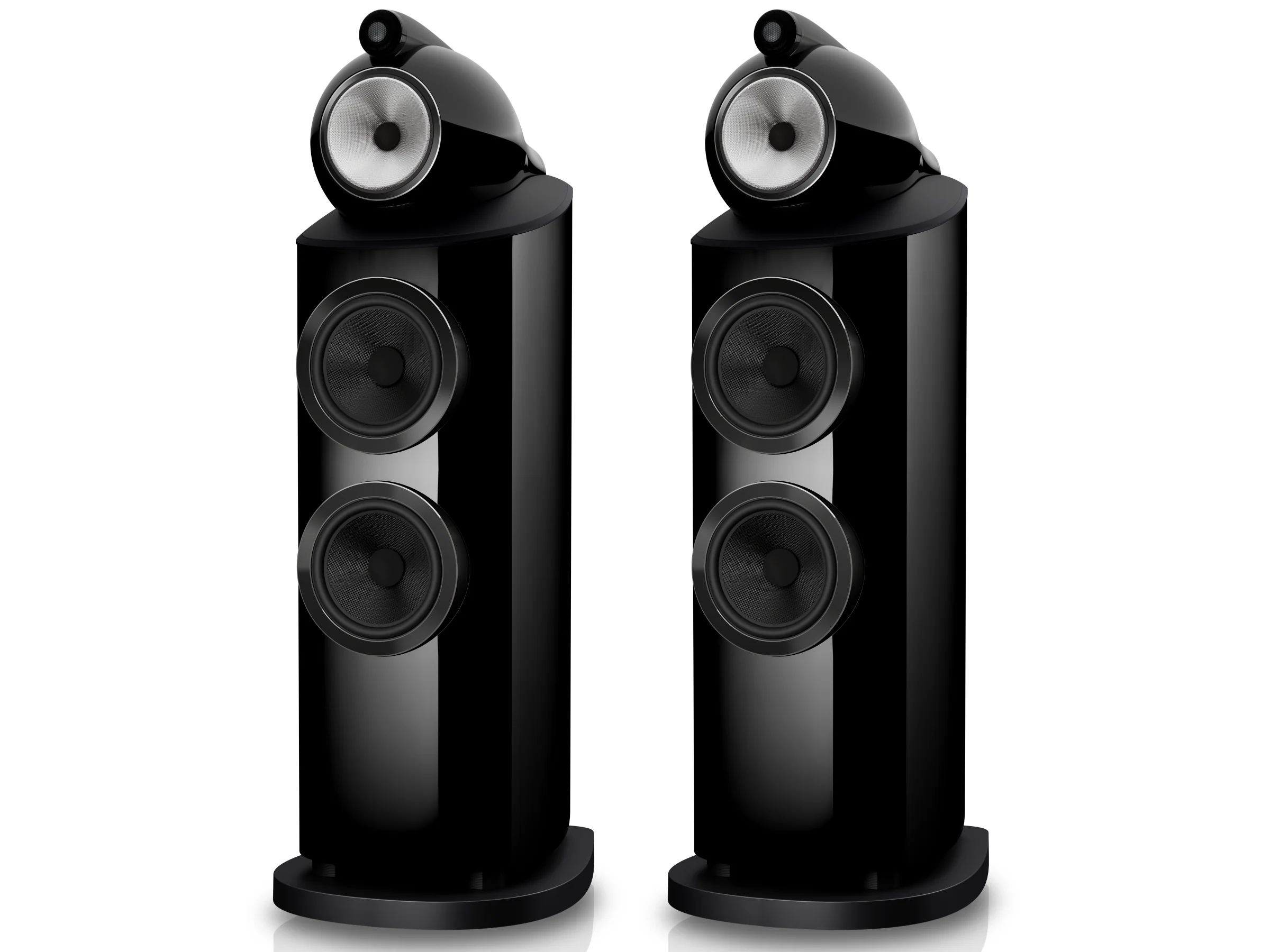

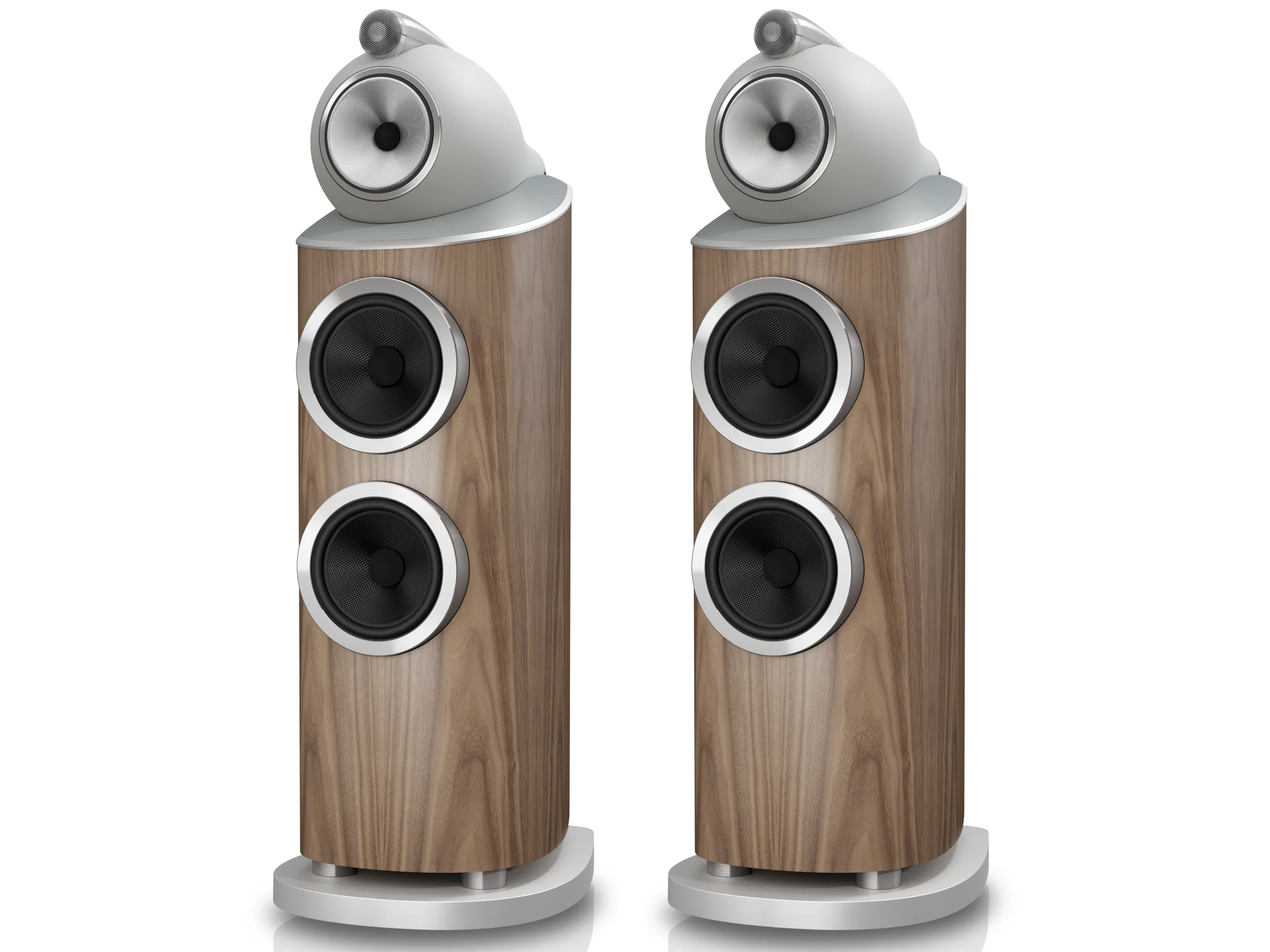

Delivering much of the quality of the flagship 801 D5 in a more affordable design, 802 D5 uses the same Diamond dome tweeter housed in a Solid Body Tweeter-on-Top, as well as the decoupled Turbine Head for its Continuum cone FST™ midrange driver. Dual 8-inch bass drivers are rigidly mounted in its reverse-wrap cabinet, ensuring controlled and precise low-frequency performance. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, the 802 D5 provides you with sound you wouldn’t believe possible.
Ultimate Drive Unit Technology
Pairing our most advanced and innovative drive unit technology, the 805 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the Continuum™ cone delivers voices and instruments with lifelike detail.
Optimised for Pure Performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be Better by Design

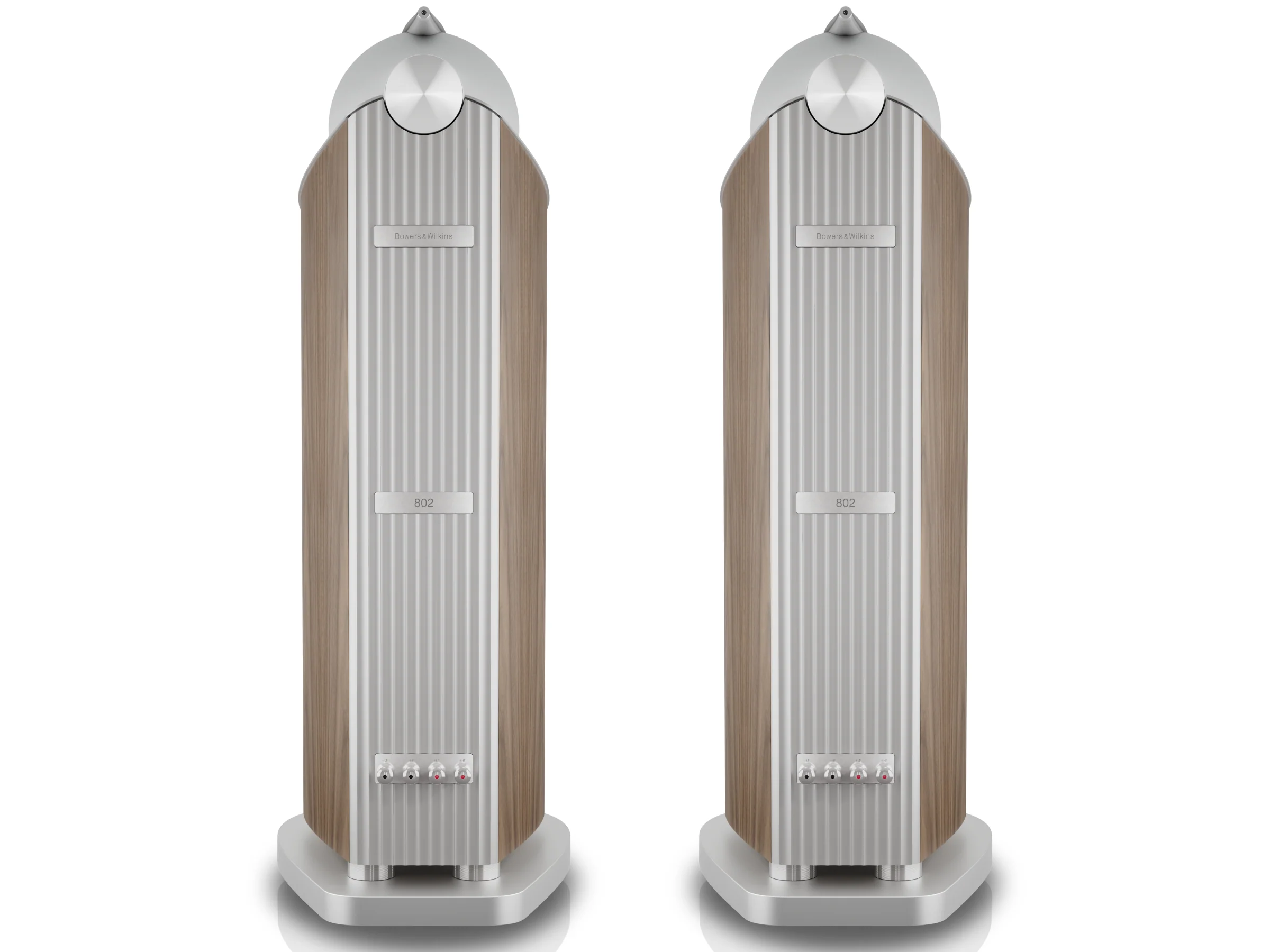

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top, musical performance is always as precise as possible.
Specifications
| Dimensions: |
Height: 1218mm (48.0in) including tweeter and plinth Width: 345mm (13.6in) cabinet only, 413mm (16.2in) including plinth Depth: 556mm (21.9in) including grille and terminals, 589mm (23.2in) including plinth |
| Net Weight: | 91.4kg (201.4lbs) |
| Technical Features: |
Diamond dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plug Biomimetic Suspension Turbine HeadMatrix™ Aerofoil™ bass cones Flowport™ |
| Description: | 3-way vented-box system |
| Drive Units: |
1 × ø25mm (1in) Diamond dome high-frequency 1 × ø150mm (6in) Continuum cone FST midrange 2 × ø200mm (8in) Aerofoil™ bass |
| Frequency Range: | -6dB 14Hz to 35kHz |
| Frequency Response: | 17Hz to 28kHz (±3dB) |
| Sensitivity: | 90dB |
| Harmonic Distortion: |
Second and third harmonics (90dB, 1m on axis) <1% from 70Hz to 20kHz<0.3% from 100Hz to 8kHz |
| Nominal Impedance: | 8Ω (minimum 3.3Ω) |
| Recommended Amplifier Power: | 50W–1000W into 8Ω on unclipped programme |
| Maximum Recommended Cable Impedance: | 0.1Ω |
| Cabinet Finishes: |
Stealth Black Warm White Dark Walnut Light Walnut |
| Grille Finishes: |
Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
