Original: $57,812.73
-65%$57,812.73
$20,234.46The Story

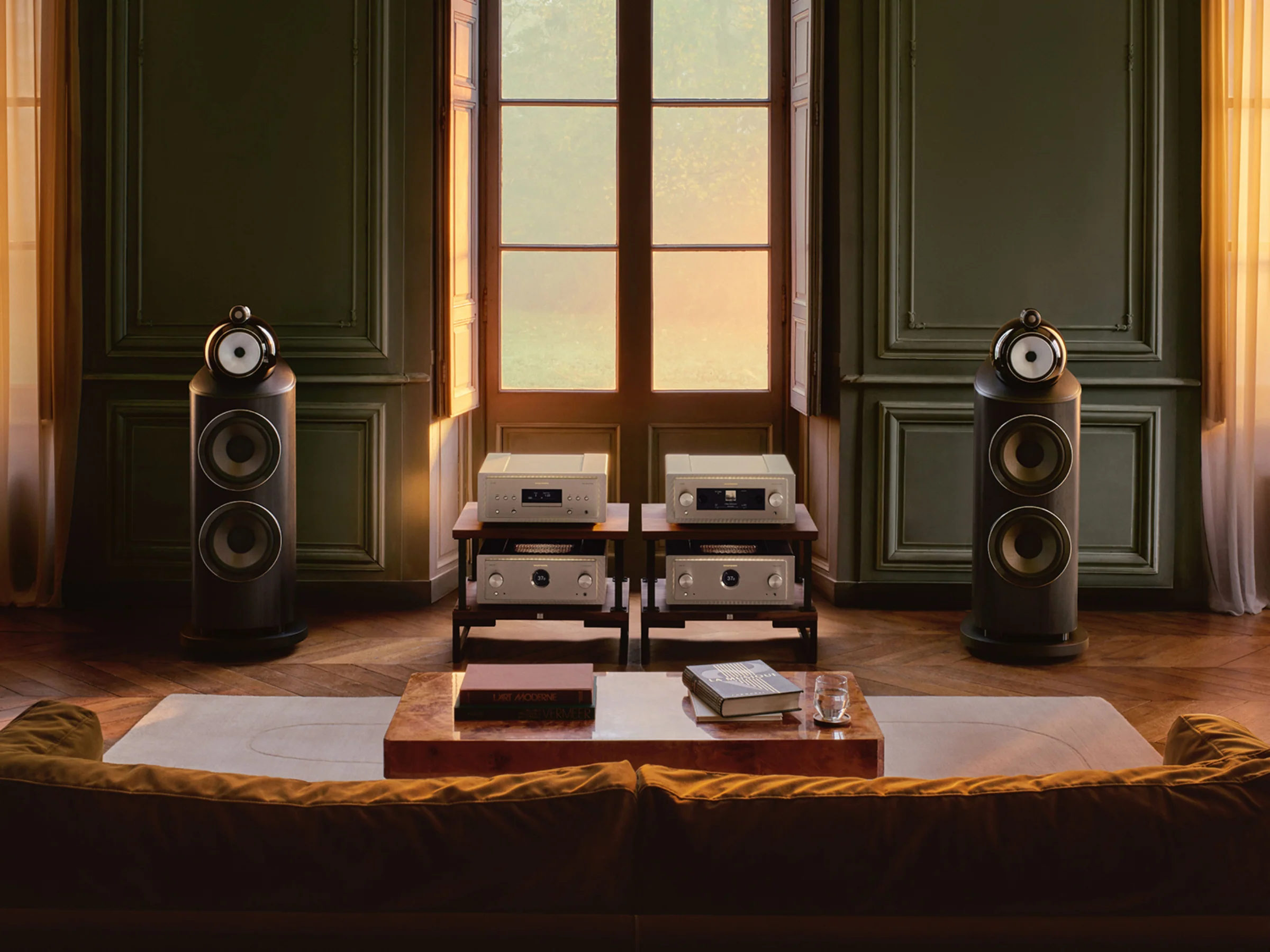

The 801 D5 is an icon refined, the pinnacle of our performance. Engineered for recording studios and discerning listeners alike, it uses our most advanced technologies to deliver reference-quality sound.

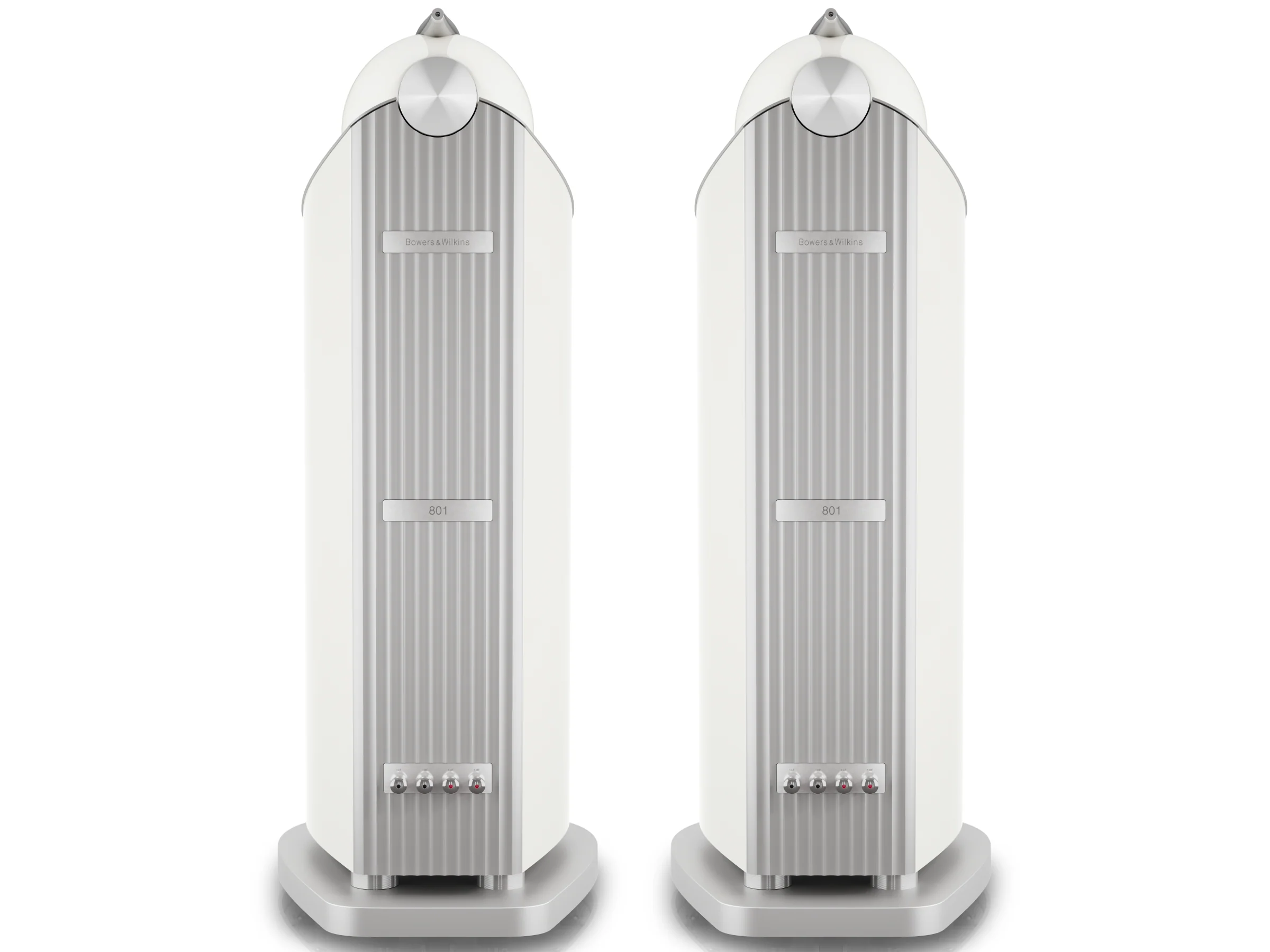

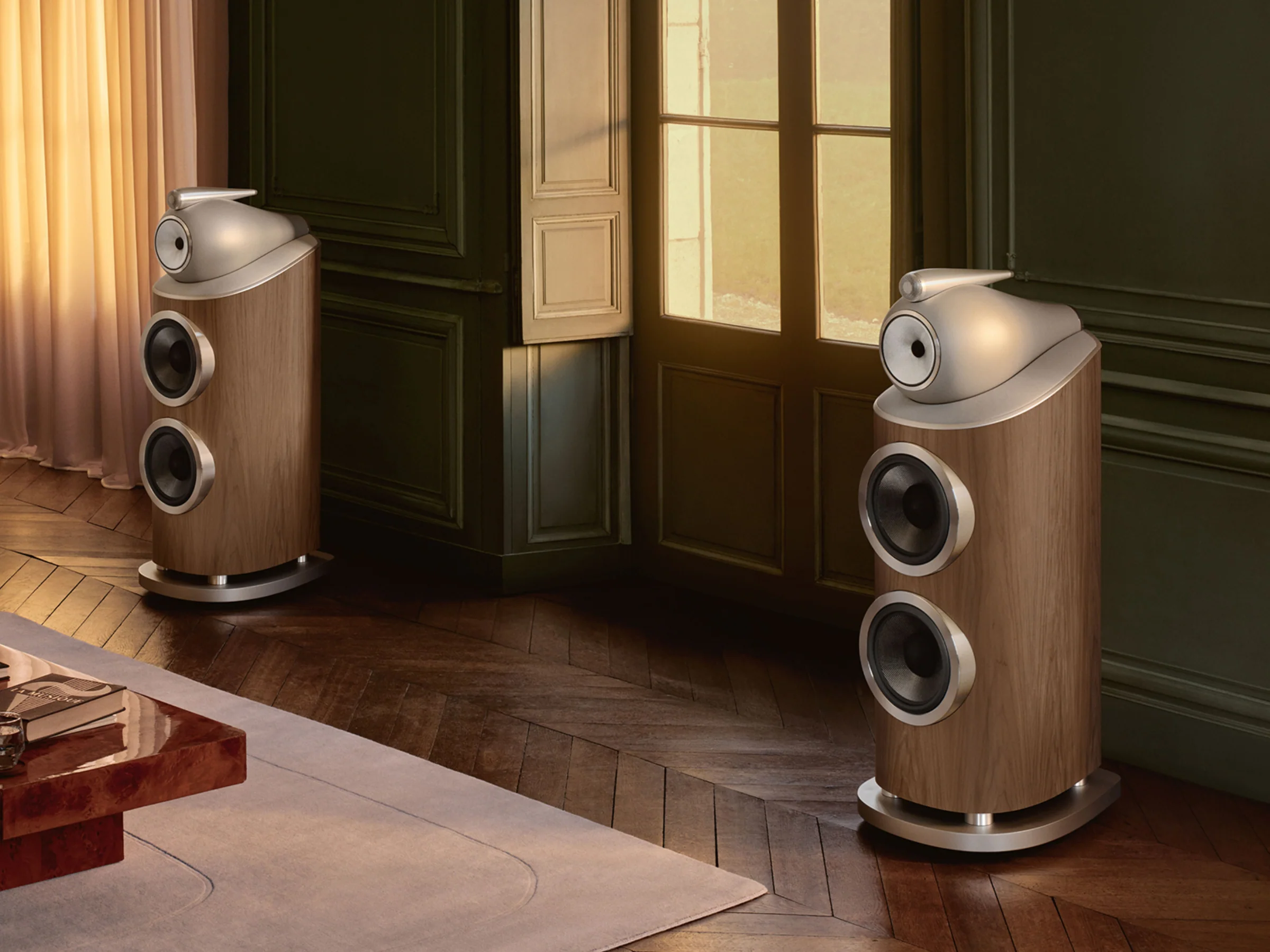

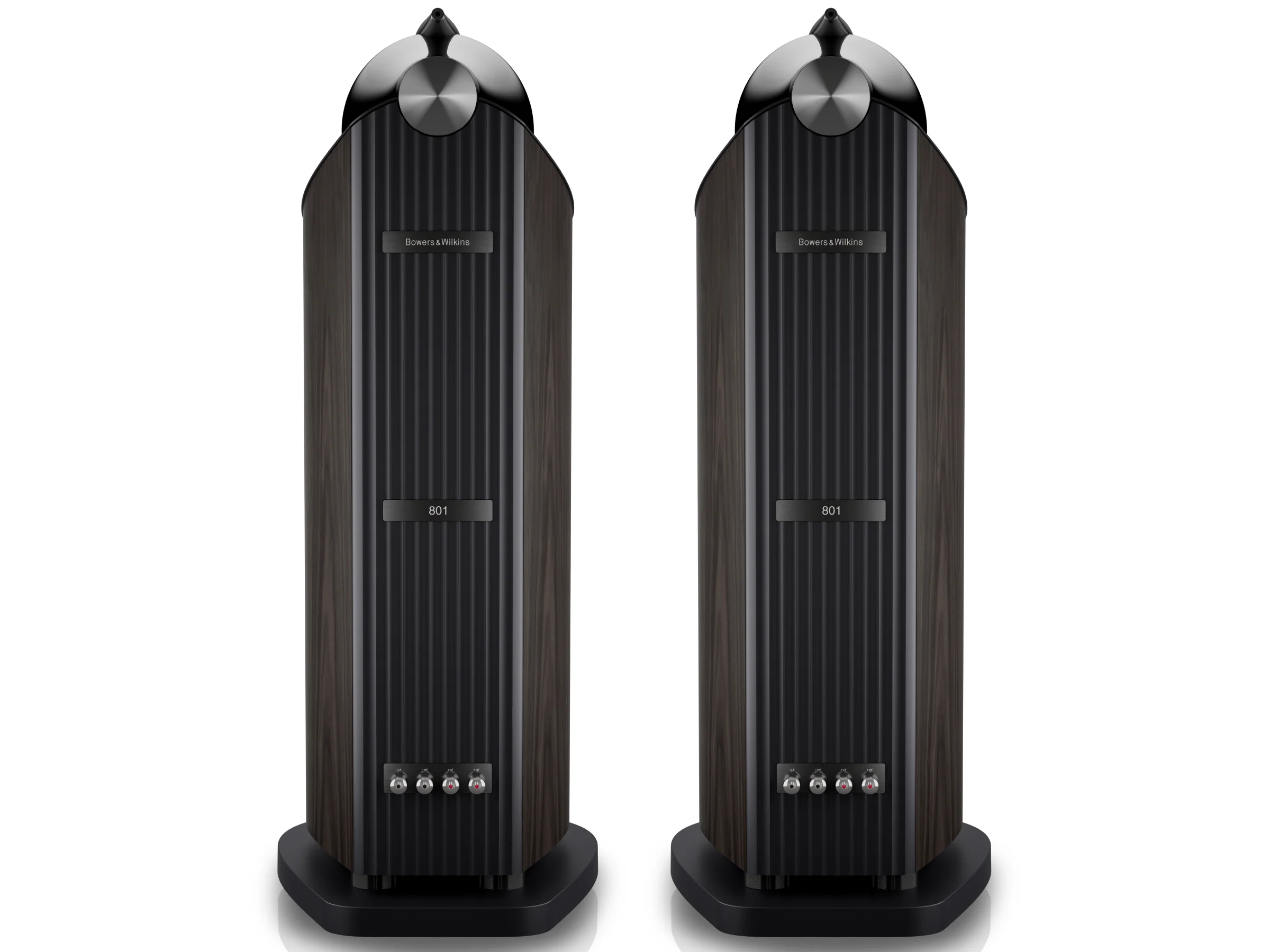

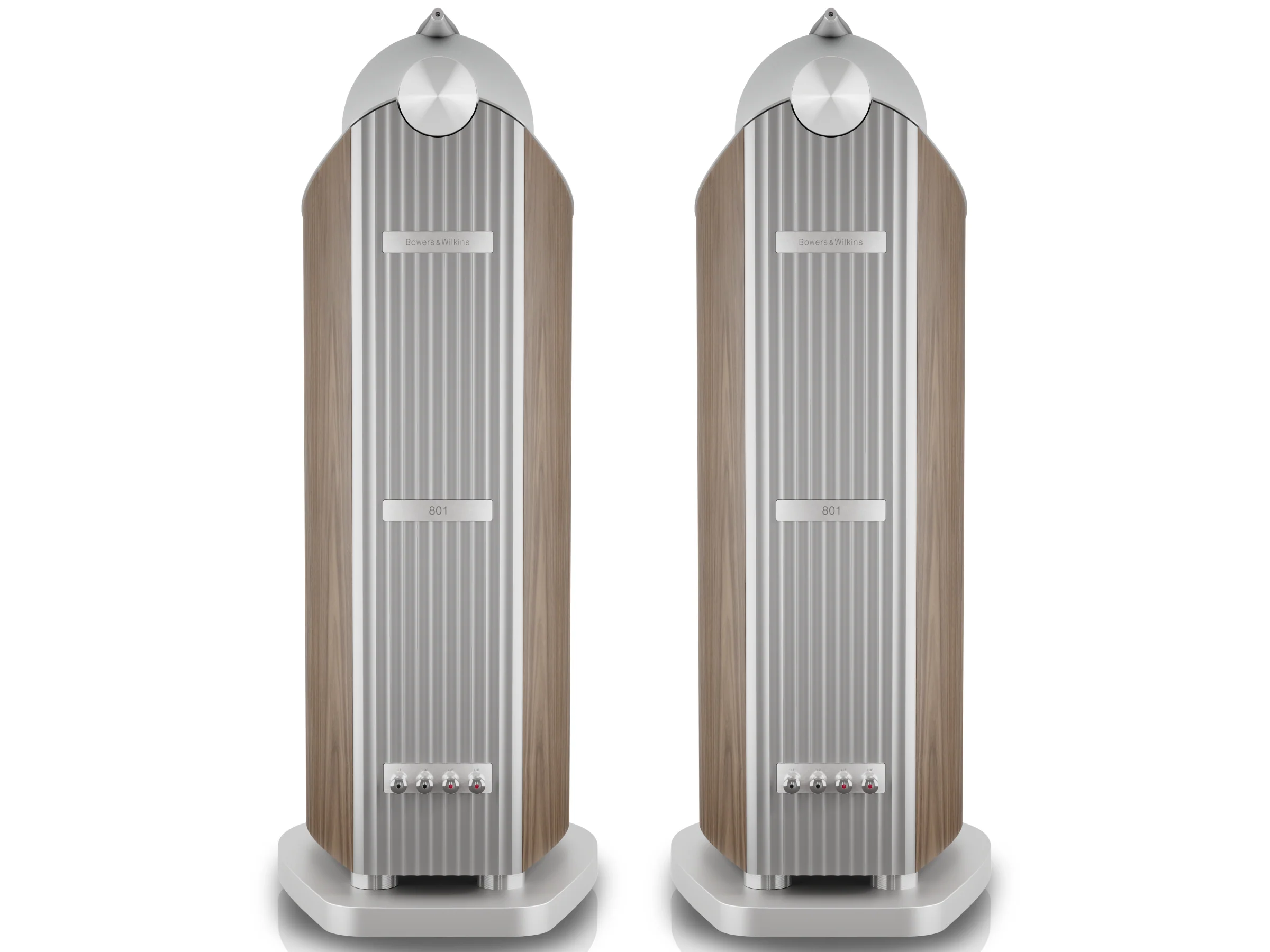

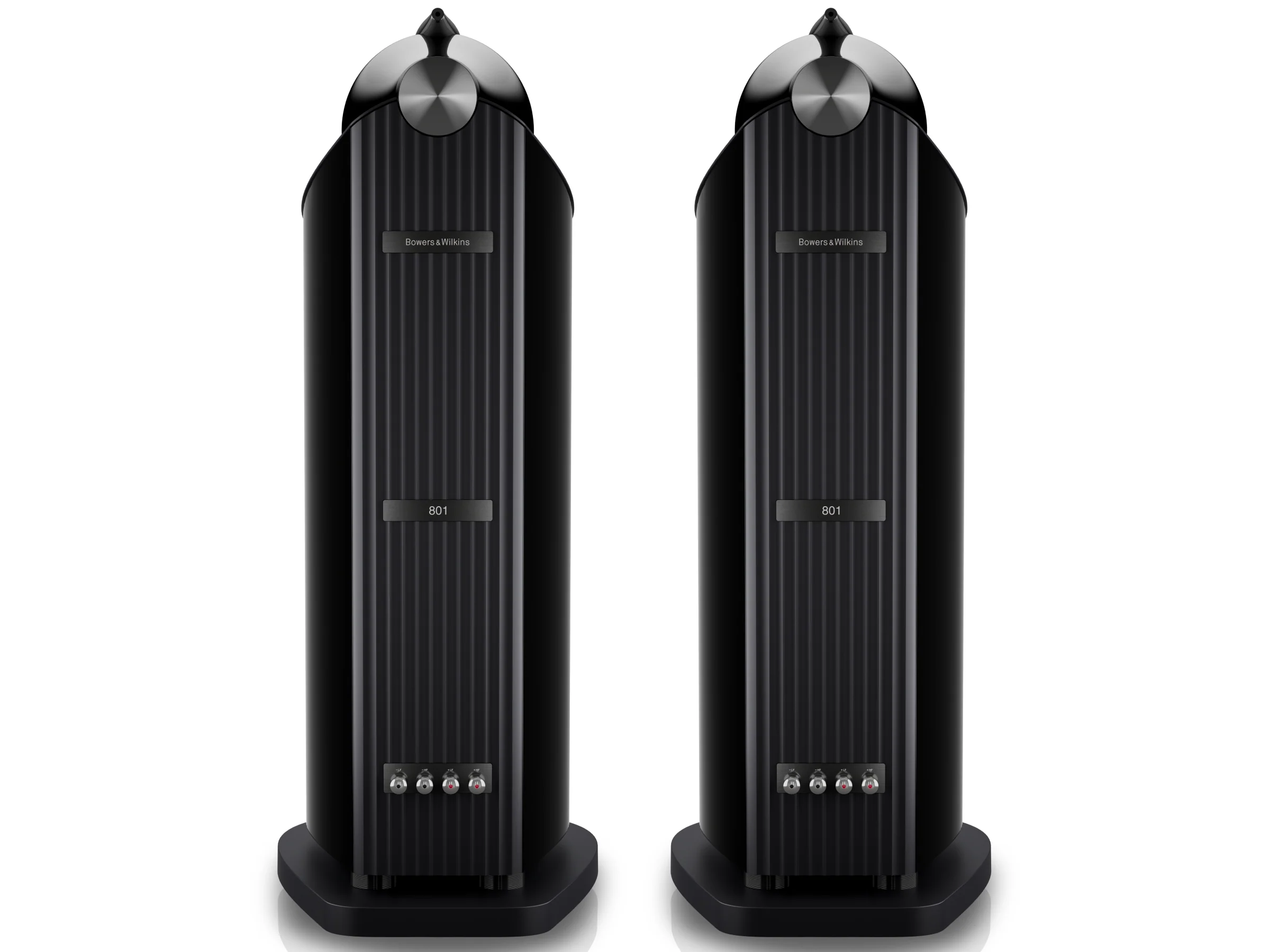

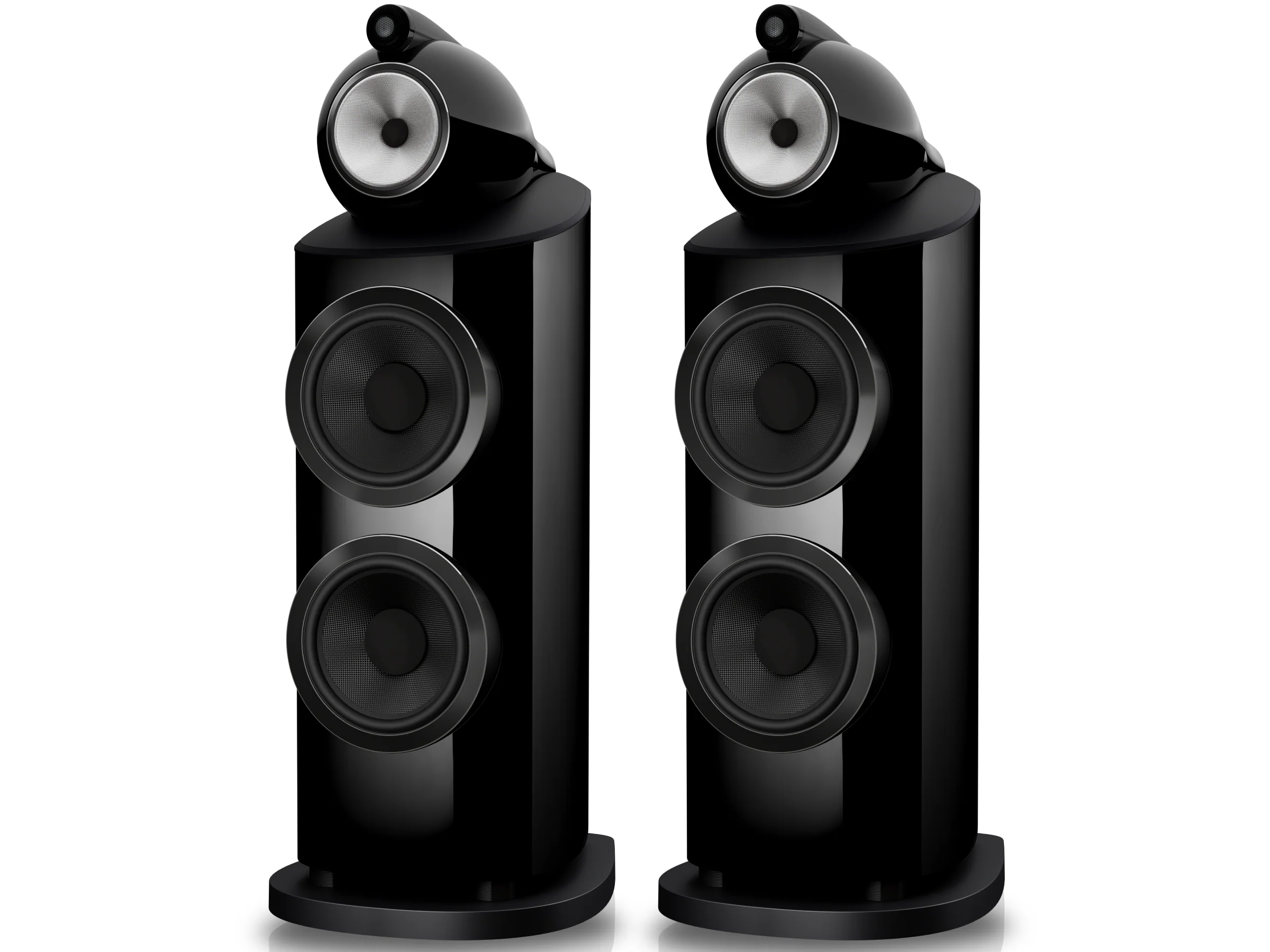

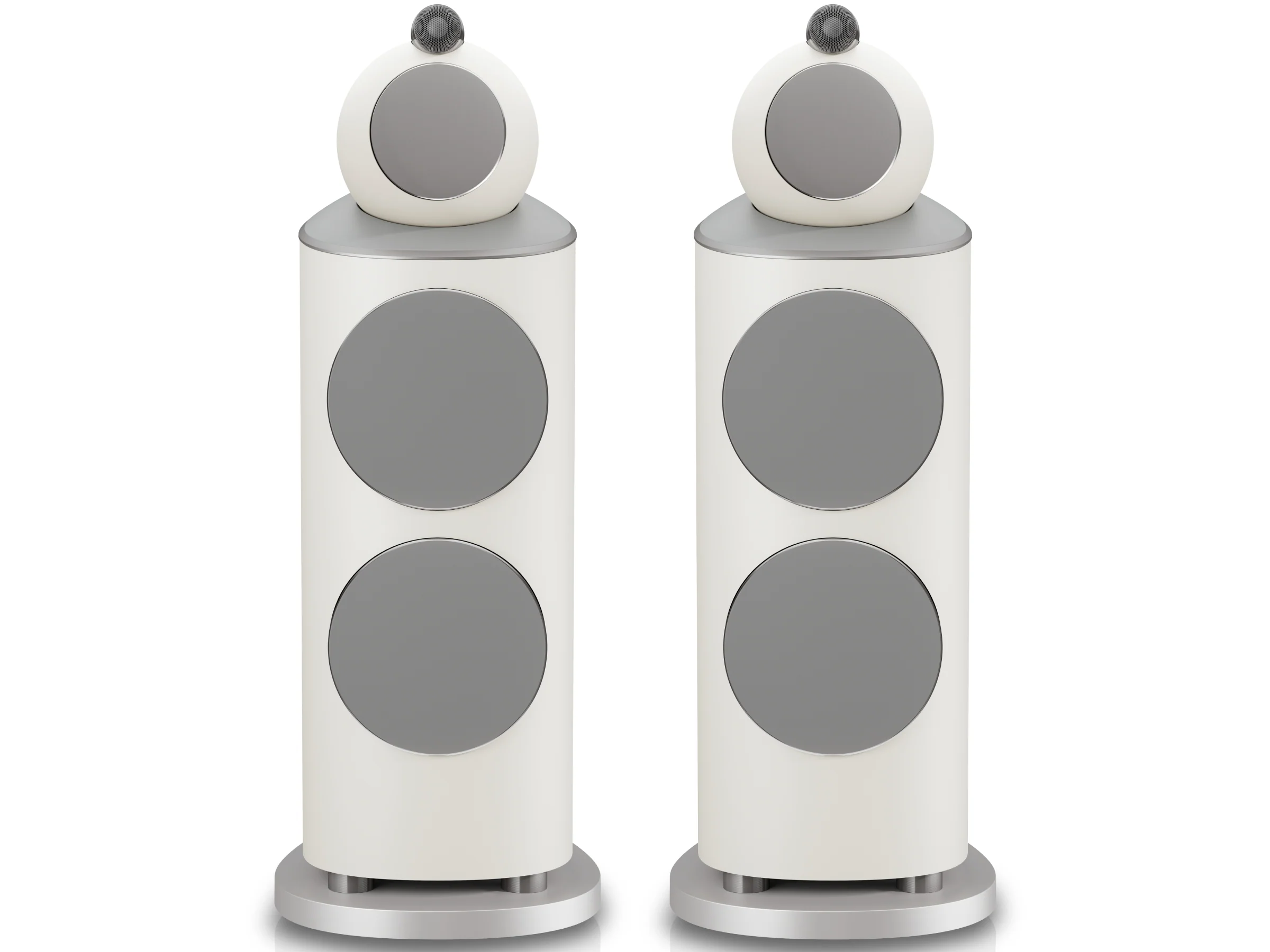

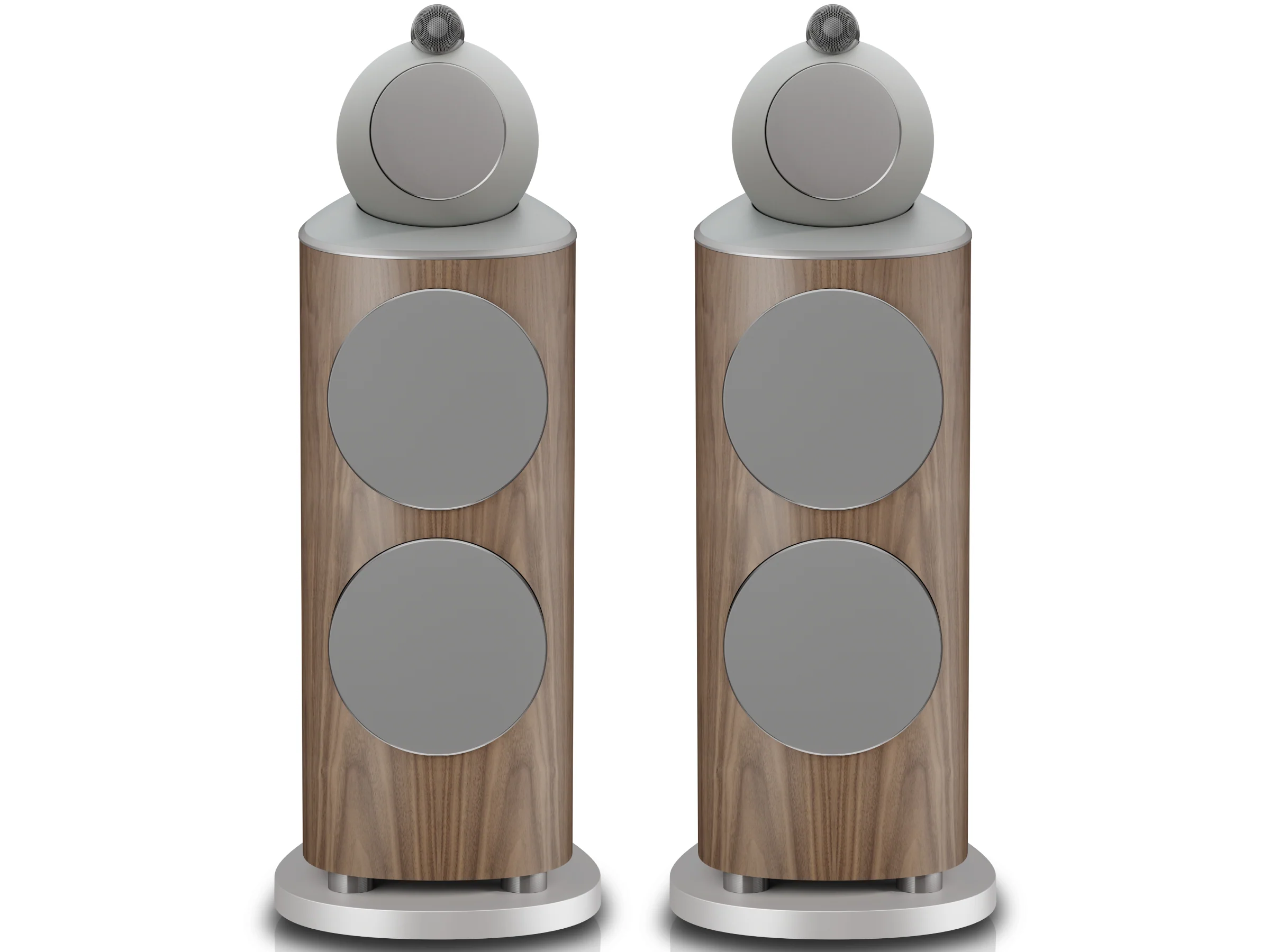

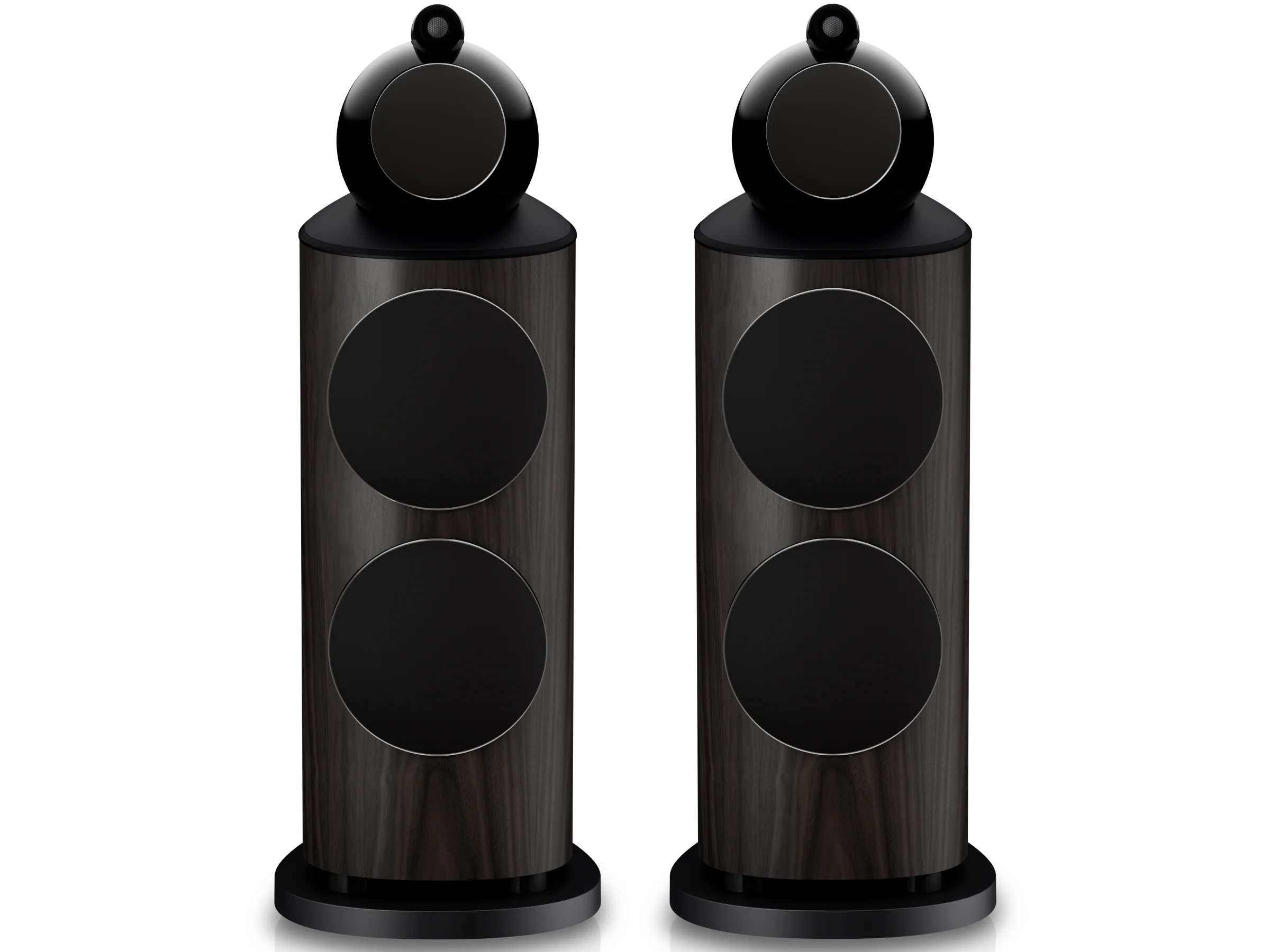

From its Diamond dome tweeter and optimised drive units to Space Frame Bracing and an upgraded plinth, its purposeful mix of evolution and innovation is housed in an elegantly crafted and beautifully finished cabinet, shaped by the science of sound. Available in Stealth Black, Warm White, Light Walnut, or Dark Walnut, with matching Leather by Connolly trim, it’s an icon of both performance and design. Born of our 60-year obsession with creating the perfect loudspeaker, 801 D5 delivers our most realistic and accurate listening experience yet.
Others Replay Music, Ours make music
Musicians record with it because they trust it. Engineers mix with it because it tells the truth. Listeners keep it for life because nothing else comes close. For generations, the 800 Series has been the loudspeaker of choice in the world’s most revered recording studios, helping create some of the greatest music and scores ever heard.
Ultimate Drive Unit Technology

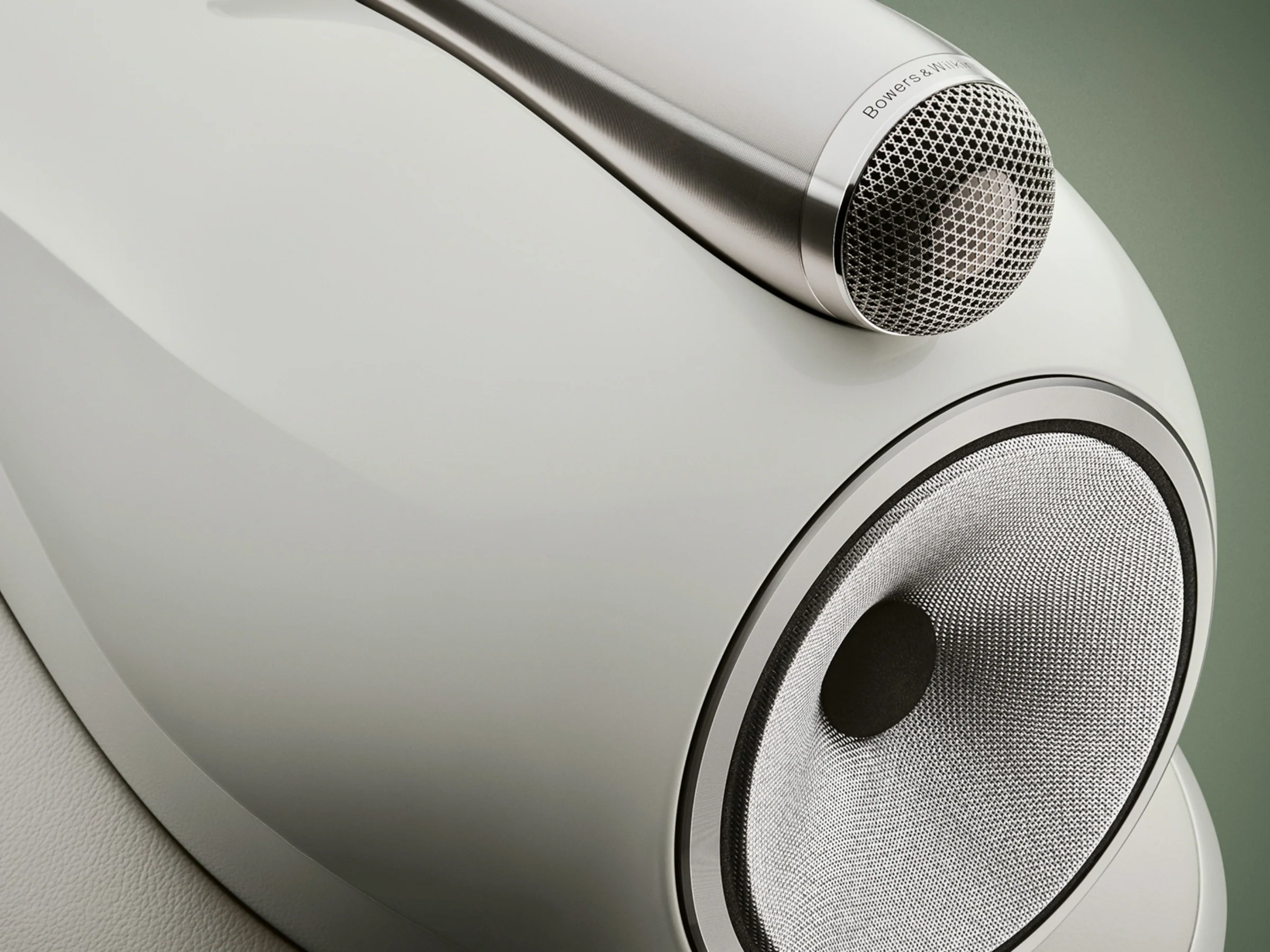

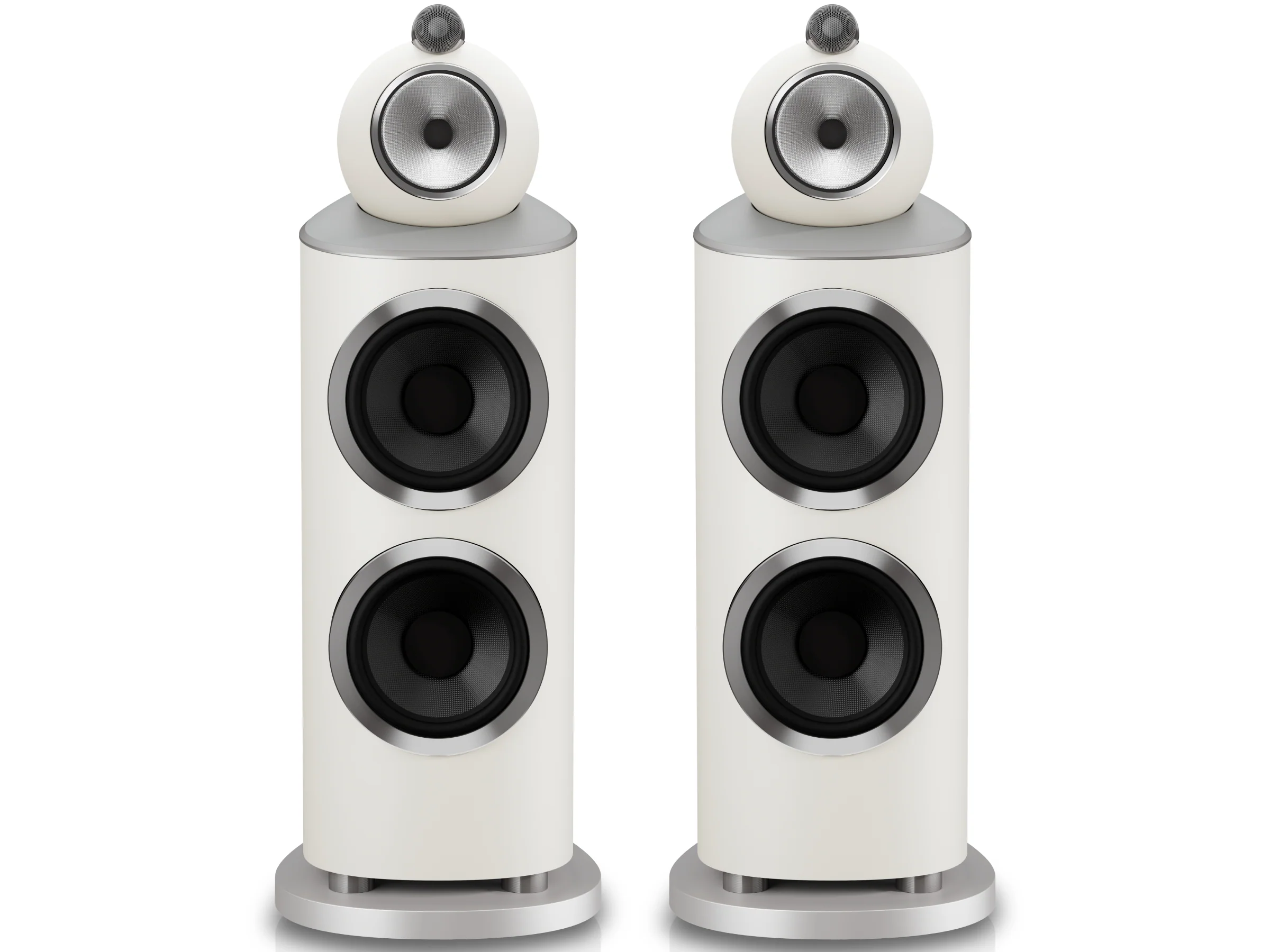

Pairing our most advanced and innovative drive unit technology, the 801 D5 delivers our purest sound ever. The Diamond dome tweeter pushes break-up frequency to 70kHz, delivering exceptional clarity, precision and openness, and the ContinuumTM cone delivers voices and instruments with lifelike detail.
Optimised for Pure Performance
Every model in the new 800 Series Diamond range benefits from enhanced technology. An upgraded Matrix™ design reduces resonance and creates a more believable soundstage, while aluminium Space Frame Bracing and an all-new aluminium top section within the cabinet help deliver an even more spacious and immersive sound.
Crafted to be Better by Design

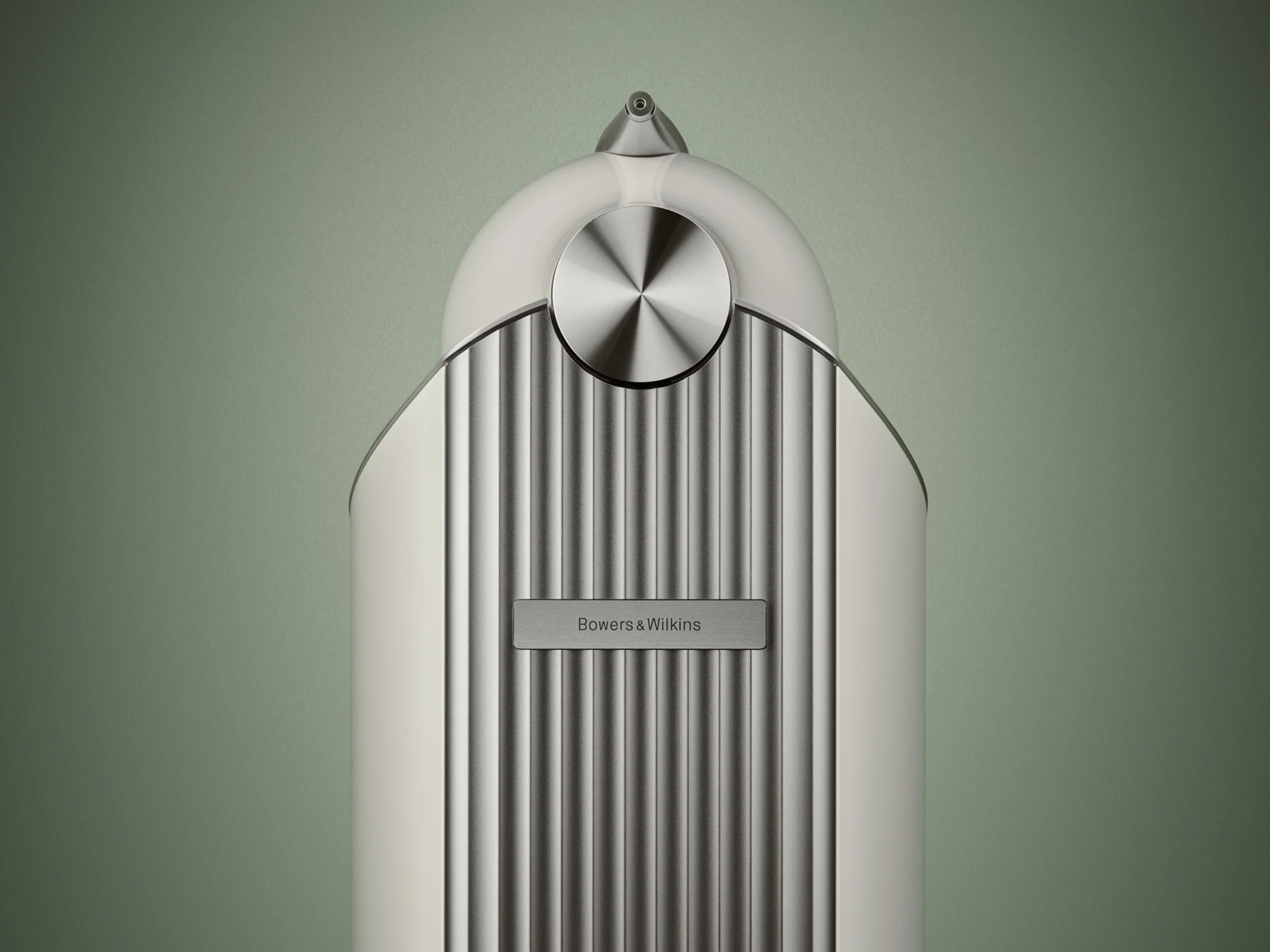

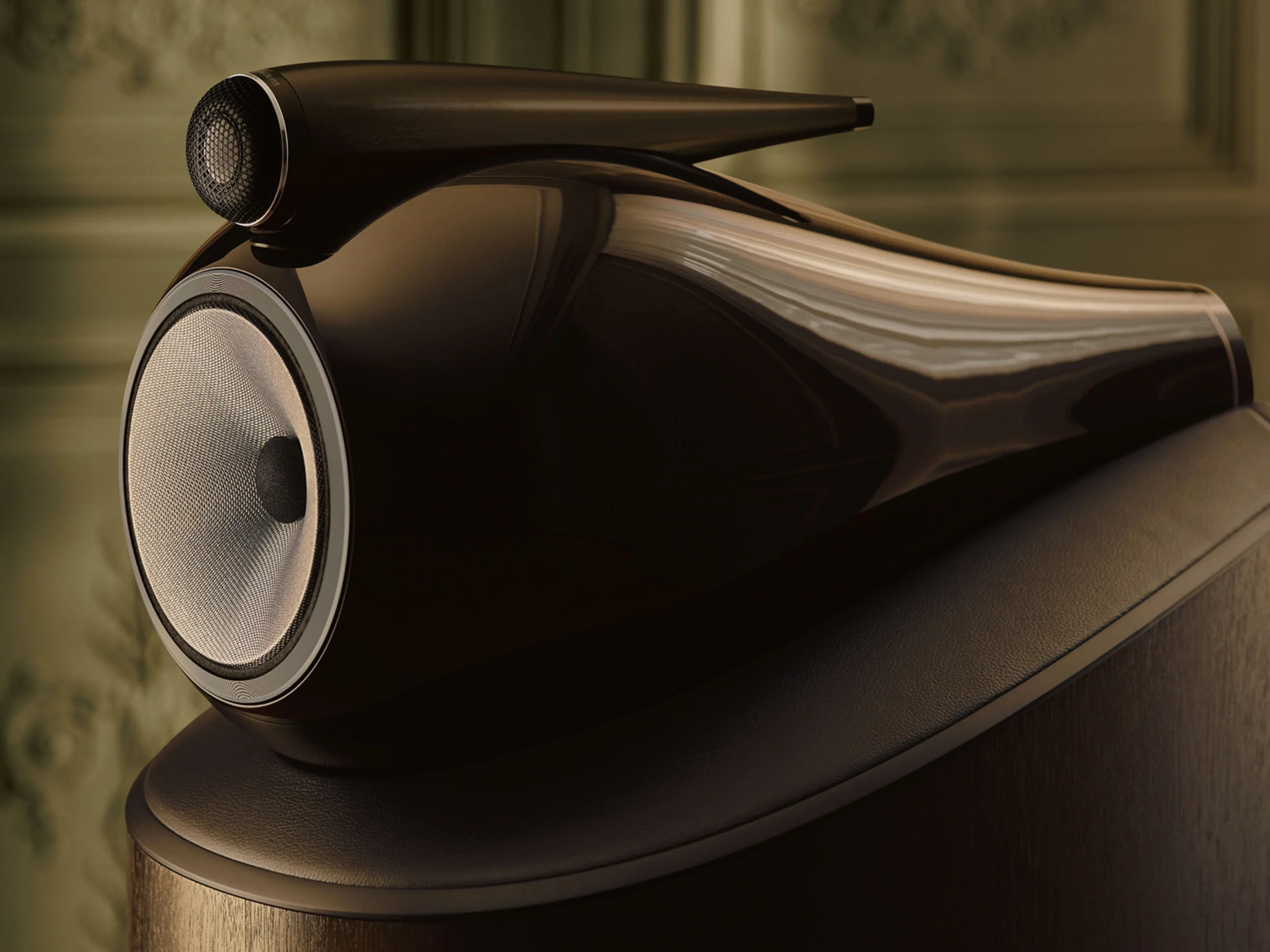

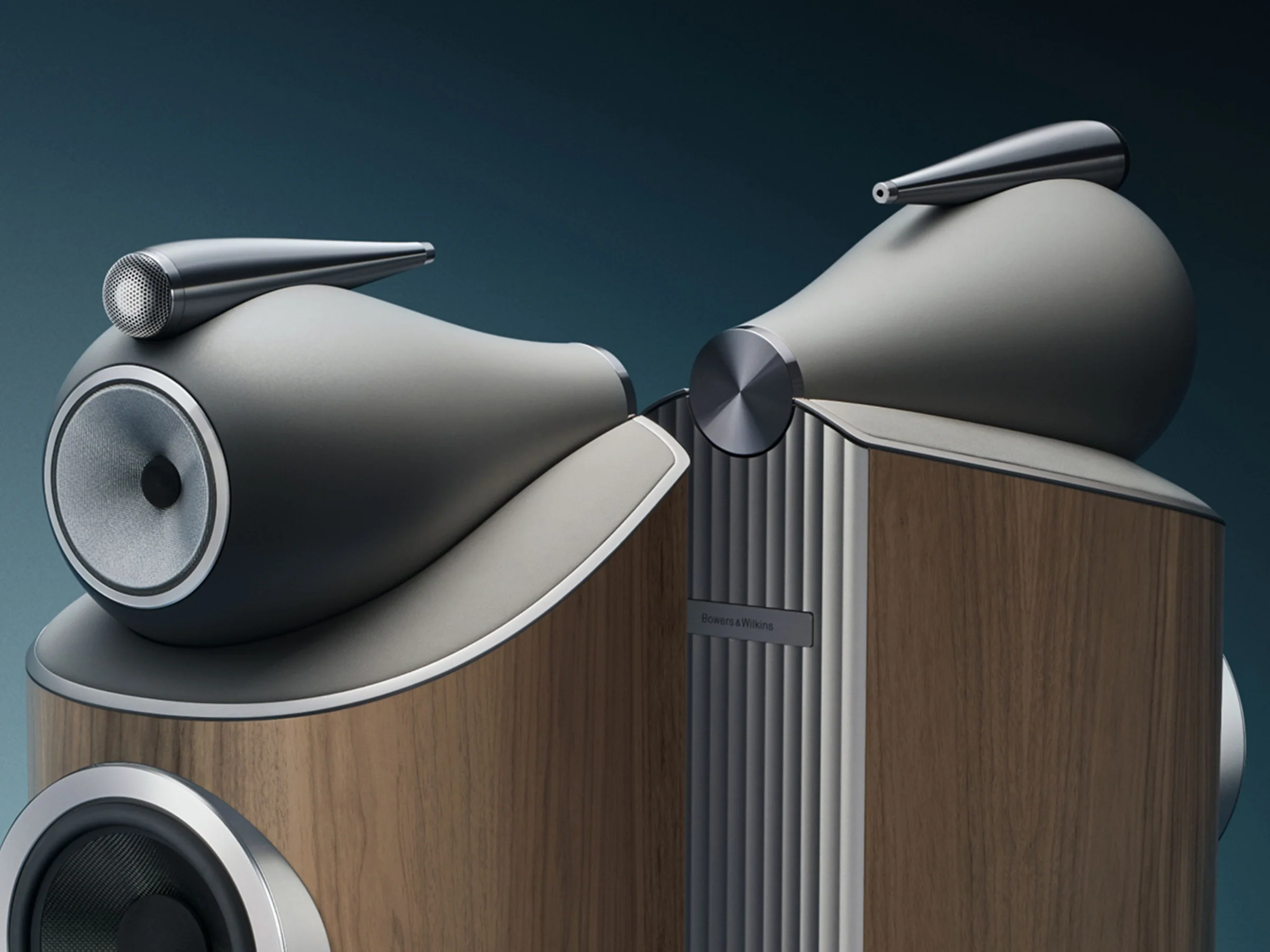

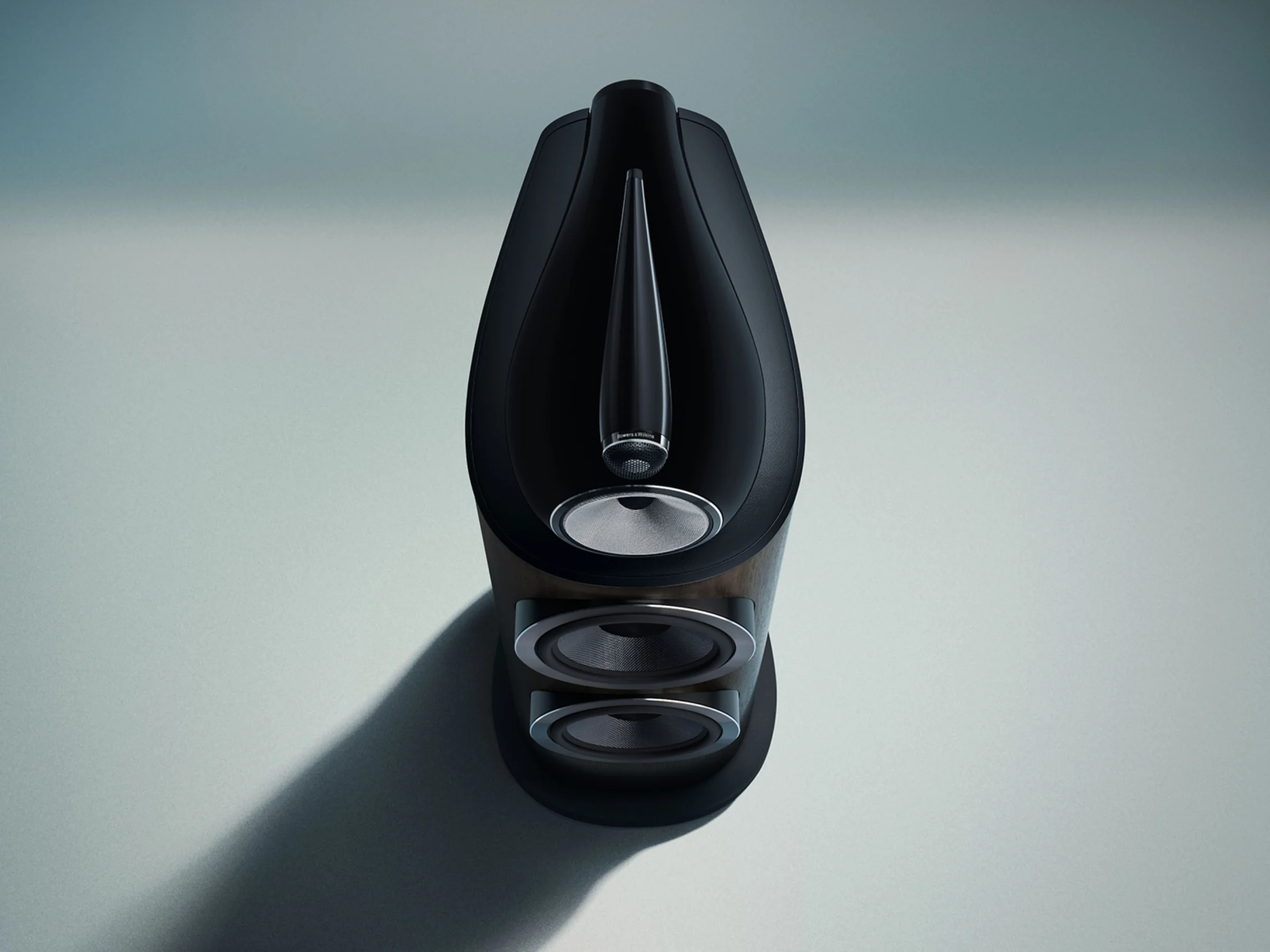

The 800 Series Diamond looks this way for a reason. Its shape is dictated by the science of sound. Our cabinets are formed from a single continuous curve, locked in place by a solid aluminium spine, so cabinet reflections are reduced. Complemented by the Tweeter-on-Top and Turbine Head, musical performance is always as precise as possible.
Specifications
| Dimensions: |
Height: 1221 mm (48.1 in), including tweeter and plinth Width: 372 mm (14.6 in) cabinet only, 447 mm (17.6 in) including plinth Depth: 556 mm (21.9 in) including grille and terminals, 597 mm (23.5 in) including plinth |
| Net Weight: | 106.4 kg (234.6 lbs) |
| Technical Features: |
Diamond dome tweeter Solid Body Tweeter-on-Top Continuum™ cone FST midrange Anti-Resonance plugBiomimetic Suspension Turbine HeadMatrix™ Aerofoil™ bass cones Flowport™ |
| Description: | 3-way vented-box system |
| Drive Units: |
1 × Ø25 mm (1 in) Diamond dome high-frequency 1 × Ø150 mm (6 in) Continuum cone FST midrange 2 × Ø250 mm (10 in) Aerofoil™ bass |
| Frequency Range: | -6 dB, 13 Hz to 35 kHz |
| Frequency Response: | 15 Hz to 28 kHz (±3 dB) |
| Sensitivity: | 90 dB |
| Harmonic Distortion: |
2nd and 3rd harmonics (90 dB, 1 m on axis) <1% from 30 Hz–20 kHz <0.3% from 100 Hz–8 kHz |
| Nominal Impedance: | 8 Ω (minimum 3.0 Ω) |
| Recommended Amplifier Power: | 50 W–1000 W into 8 Ω on unclipped programme |
| Maximum Recommended Cable Impedance: | 0.1 Ω |
| Cabinet Finishes: |
Stealth Black Warm White Dark Walnut Light Walnut |
| Grille Finishes: |
Black (Stealth Black and Dark Walnut) Grey (Warm White and Light Walnut) |
