The Story

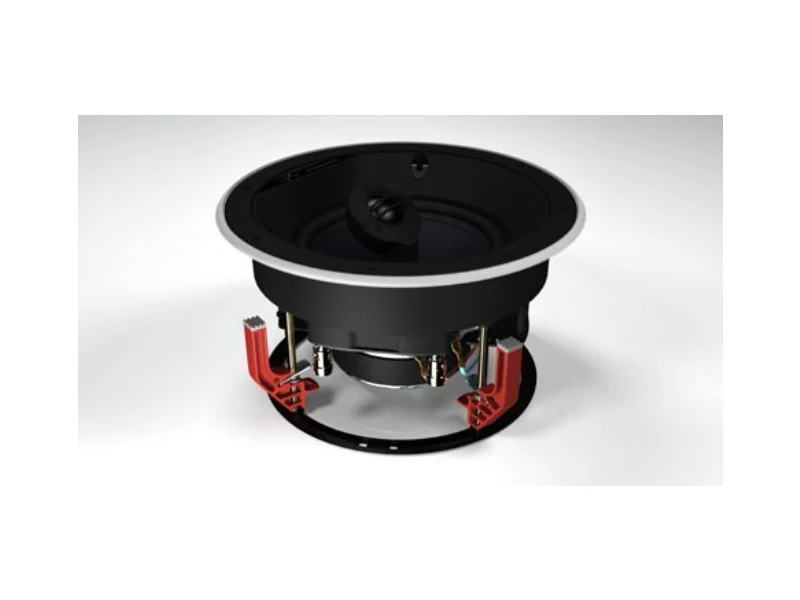

B&W CCM664 6" Ceiling Speakers
The B&W CCM664 is a ceiling speaker distinguished by its adjustable tilt offset 25mm (1in) soft dome tweeter. It brings both a smoother and more detailed high frequency performance to a package that also includes a woven glass fibre150mm (6in) bass/midrange driver and three-position EQ switch for a better off-axis response.
CCM664 is a classically simple and cost effective route to high quality ceiling mount sound and is simple and quick to install.
Specifications
|
Description |
2-way in-ceiling system |
|
Drive Units |
1x ø25mm (1in) soft dome tweeter |
|
Frequency Range (-6dB) |
45Hz – 35kHz |
|
Recommended Amp Power |
25 – 130w |
|
Sensitivity SPL (2.83V, 1m) |
87dB |
|
Impedance Nominal (min) |
8Ω (4.5Ω) |
|
Frame diameter |
240mm (9.5in) |
|
Cut-out diameter |
202mm (8in) |
|
Depth behind surface |
133mm (5.2in) |
|
Protrusion |
4mm (0.2in) |
|
Pre-mount Kit |
C6 |
|
Back Box |
6C |
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
B&W CCM664 6" Ceiling Speakers
The B&W CCM664 is a ceiling speaker distinguished by its adjustable tilt offset 25mm (1in) soft dome tweeter. It brings both a smoother and more detailed high frequency performance to a package that also includes a woven glass fibre150mm (6in) bass/midrange driver and three-position EQ switch for a better off-axis response.
CCM664 is a classically simple and cost effective route to high quality ceiling mount sound and is simple and quick to install.
Specifications
|
Description |
2-way in-ceiling system |
|
Drive Units |
1x ø25mm (1in) soft dome tweeter |
|
Frequency Range (-6dB) |
45Hz – 35kHz |
|
Recommended Amp Power |
25 – 130w |
|
Sensitivity SPL (2.83V, 1m) |
87dB |
|
Impedance Nominal (min) |
8Ω (4.5Ω) |
|
Frame diameter |
240mm (9.5in) |
|
Cut-out diameter |
202mm (8in) |
|
Depth behind surface |
133mm (5.2in) |
|
Protrusion |
4mm (0.2in) |
|
Pre-mount Kit |
C6 |
|
Back Box |
6C |
